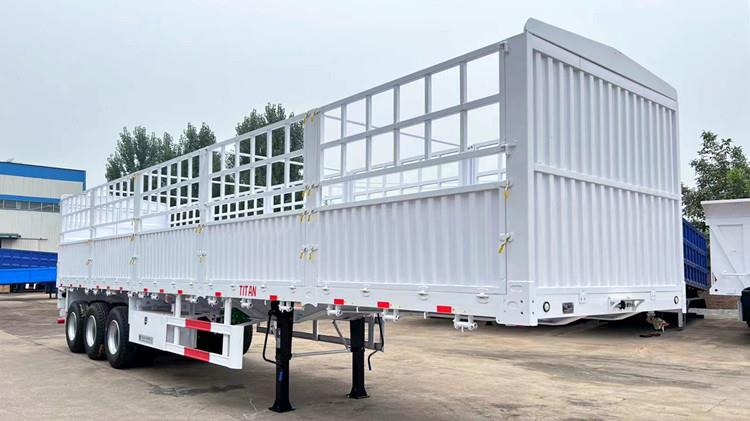

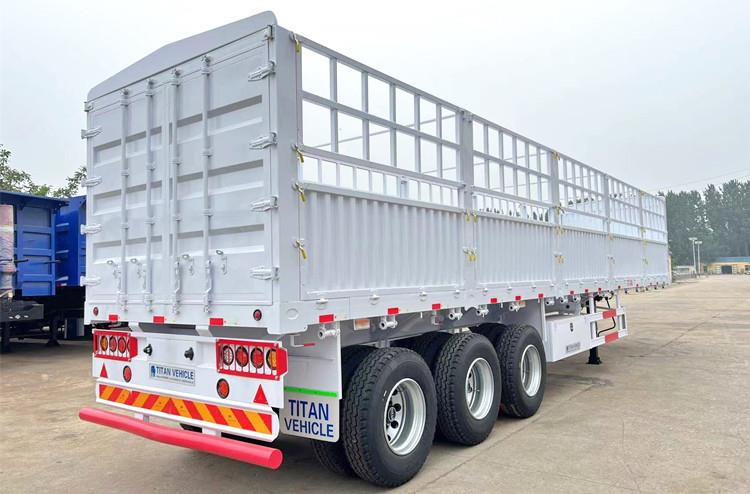

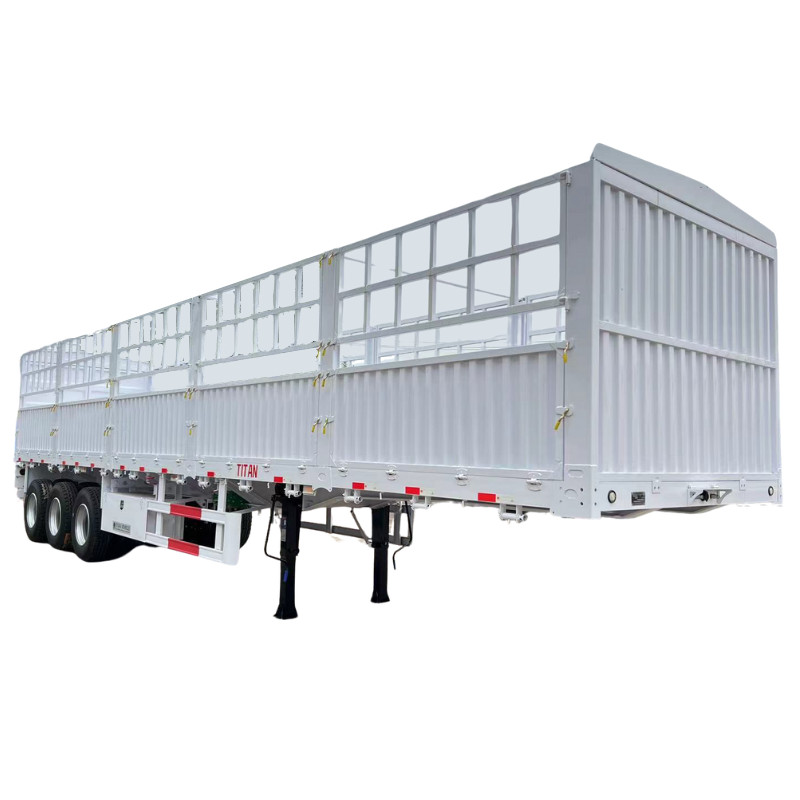

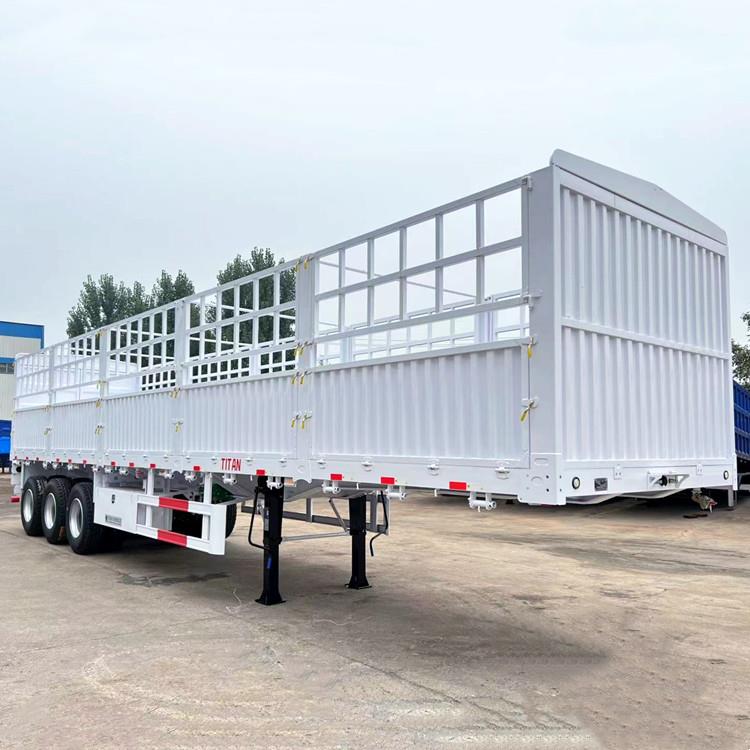

60 Ton Fence Cargo Truck Trailer

Fence Trailer Description：

TITAN fence cargo truck trailer deeply loved by foreign customers due to main material used high quality steel-Q345. It has high-strength, strong and sturdy features, stability and safety when operating in harsh road conditions.

In addition, the 60 ton fence truck trailer accessories and configuration all adopt international famous brand and China famous brand, this makes the trailer not only increase long serivce life but aslo improve operating efficiency and save maintenance costs.

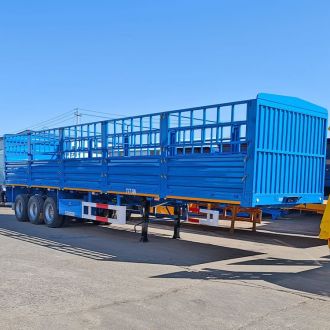

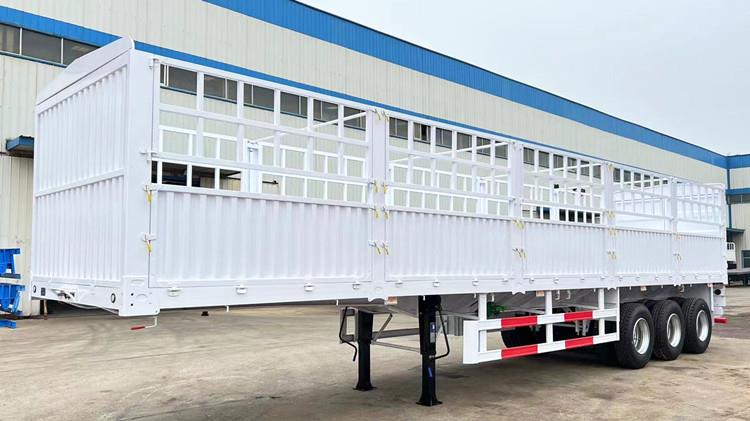

China 3 Axle 60 Ton Fence Cargo Truck Trailer for Sale in Ghana

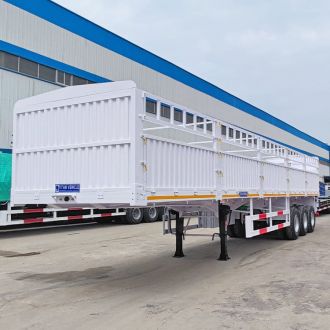

China 3 Axle 60 Ton Fence Cargo Truck Trailer for Sale in Ghana

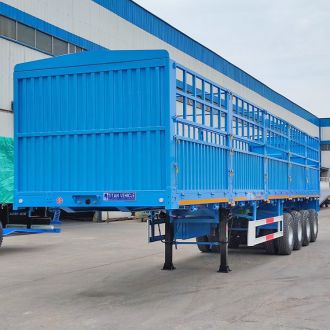

China 3 Axle 60 Ton Fence Cargo Truck Trailer for Sale in Ghana

Specification of Fence Cargo Trailer:

Dimension(mm): 12500x2500x3350mm

Trailer Sides: 1800mm

Loading capacity(ton): ≤60T

Axles: 3 axles, TITAN Brand

Tire: 12 units, 12.00R22.5

Suspension: Mechanical suspension

Spring Leaf: 90(W)mmx13(Thickness)mmx10 layers or 100mmx12mmx12 (specially intended for overseas markets)

King Pin: JOST brand

Landing Gear: JOST brand

Main Beam: Height: 500mm, Upper plate:14mm, Middle plate:8mm, Bottom plate:16mm, Material:Q345B steel

Bottom Side Beam: 16mm or 18mm steel channel (material: Q235 steel)

Platform: 3mm-thick checkered plate

Brake Chamber: WABCO

Valve: WABCO valve

ABS: Optional

Light: LED light

Voltage: 24V

Socket(Receptacle): 7-pin Socket (for 7 wire harness)

Tool Box: 1m x 0.5m x 0.5m (The tool box contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar. Its size can be tailored to suit your needs)

Painting: Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats

Advantages of Fence Trailer for Sale:

1. The fence cargo truck trailer frame adopts a space frame structure formed by welding longitudinal beams and integral through cross beams. It can balance the strength, rigidity, and toughness of the frame, with strong bearing capacity and no deformation.

2. Reduce tire wear and fuel consumption. Under the same road conditions and load capacity, fuel consumption per 100 kilometers can be reduced by more than 1.2 liters.

3. Imported brake pads and implanted wear alarm device. Effectively guarantee the braking performance of the fences trailer for sale during operation.

4. Fence trailer for sale in Ghana adopts a new type of suspension system with high strength and strong impact resistance. The load of each axle is balanced, and the system tie rod angle is reasonably designed to reduce the friction slip distance between the tire and the ground and effectively reduce tire wear during frequent bumps.

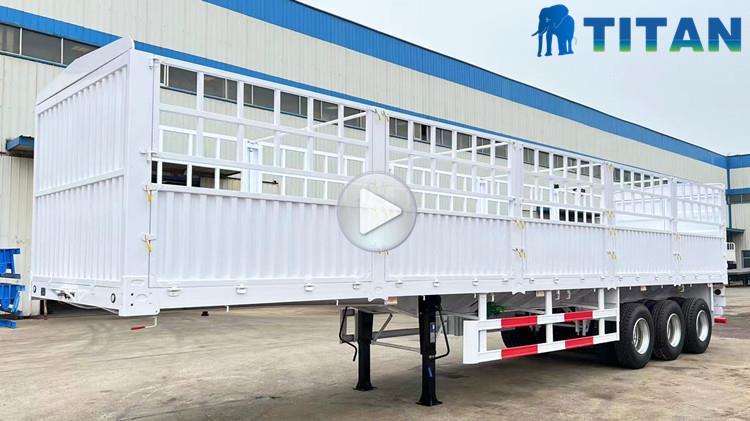

Video of Fence cargo trailer:
