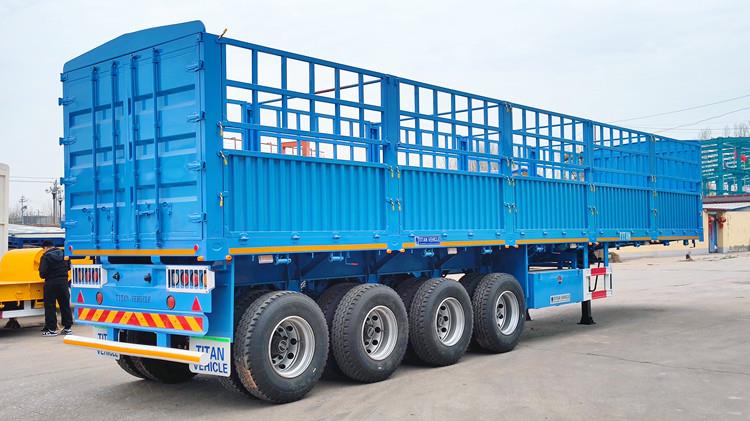

4 Axle 80 Ton Fence Stake Trailer

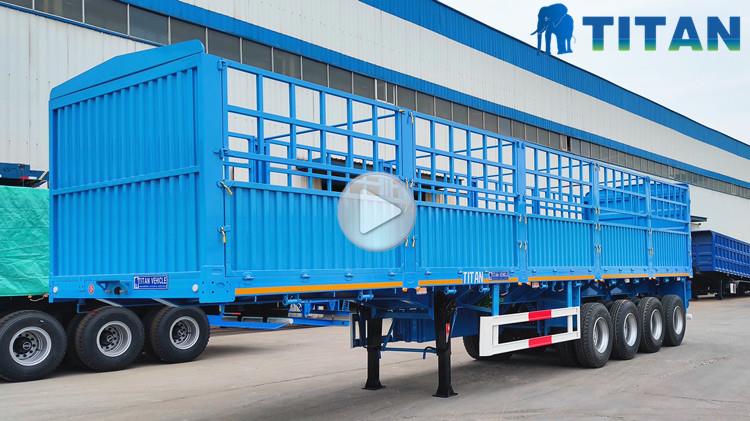

Video of Fence semi trailer:

Description of stake semi trailer：

With a weight capacity of up to 80 tons, this 4 axle fence semi trailer can accommodate large and heavy cargo, making it suitable for various industries such as construction and logistics.

80 ton stake semi trailer is equipped with safety features such as anti-skid flooring and side rails, ensuring that the cargo is secured and minimizing the risk of accidents during transit. The open design with a fence helps facilitate the loading and unloading process, making it easier to secure and access the cargo.

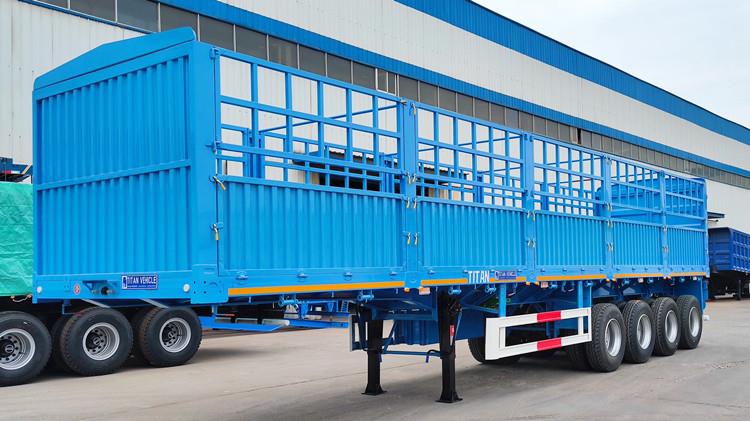

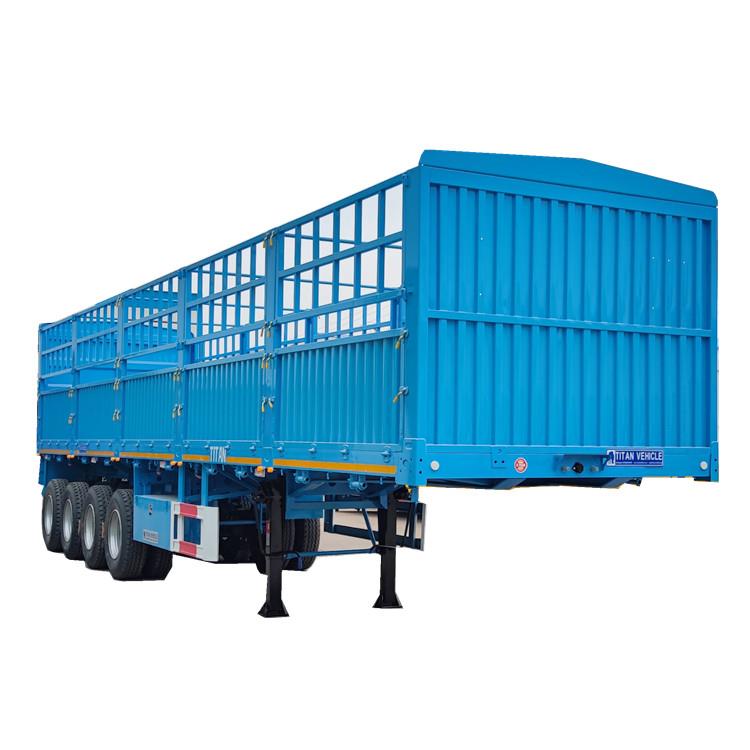

4 Axle 80 Ton Fence Stake Semi Trailer for Sale in Ghana

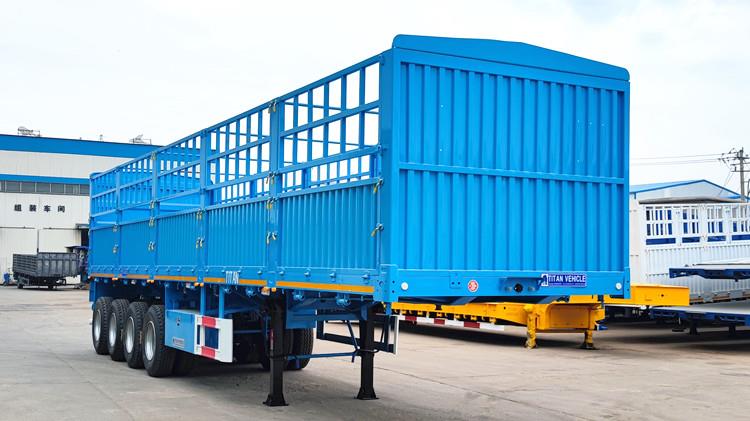

4 Axle 80 Ton Fence Stake Semi Trailer for Sale in Ghana

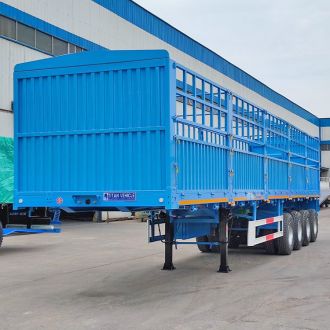

4 Axle 80 Ton Fence Stake Semi Trailer for Sale in Ghana

Specification of 80 Ton Fence Trailer:

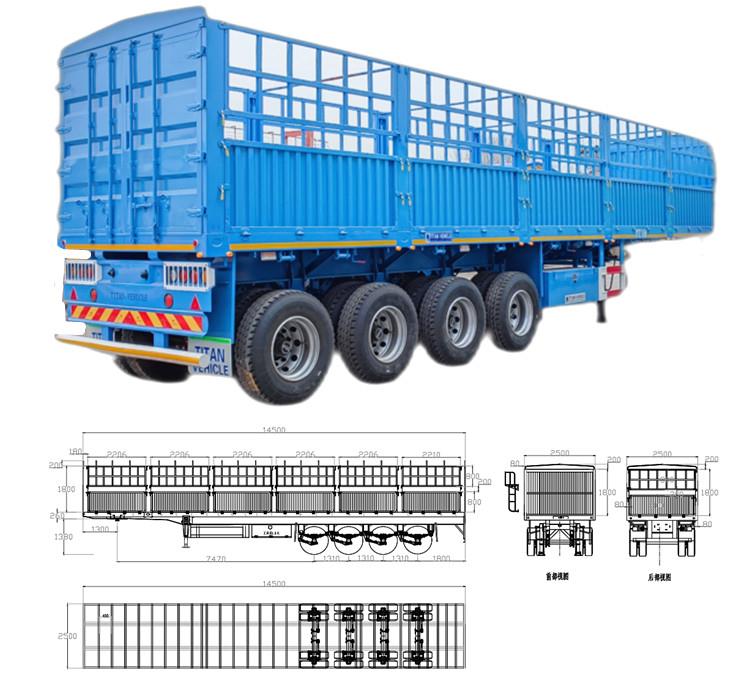

Dimension(mm): 14500x2500x3350mm

Trailer Sides: 1800mm

Loading capacity(ton): ≤80T

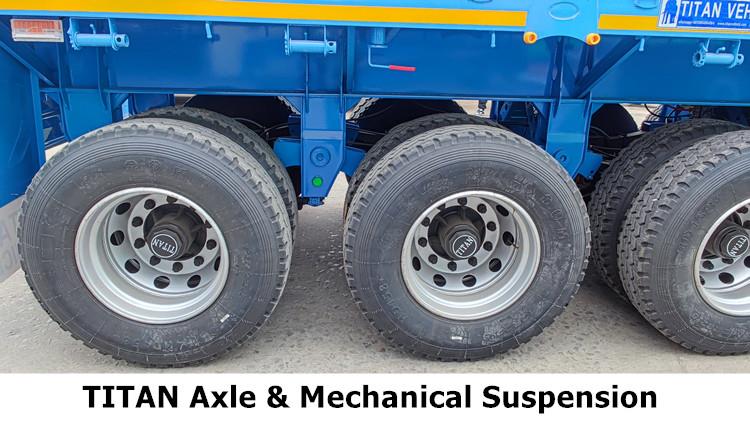

Axles: 4 axles, TITAN Brand

Tire: 16 units, 12.00R22.5

Suspension: Mechanical suspension

Spring Leaf: 90(W)mmx13(Thickness)mmx10 layers or 100mmx12mmx12 (specially intended for overseas markets)

King Pin: JOST brand

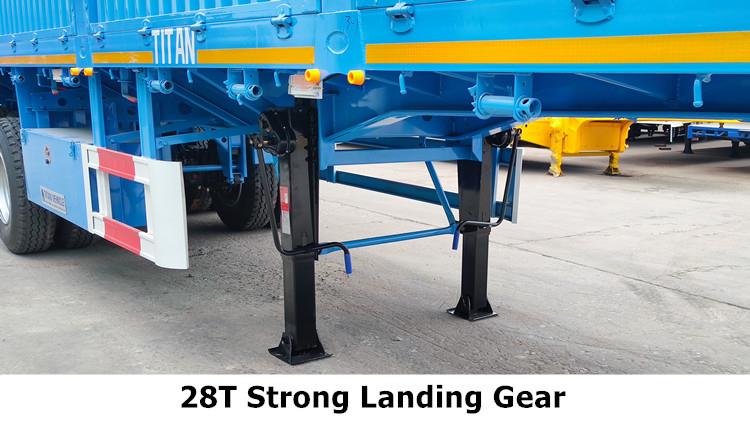

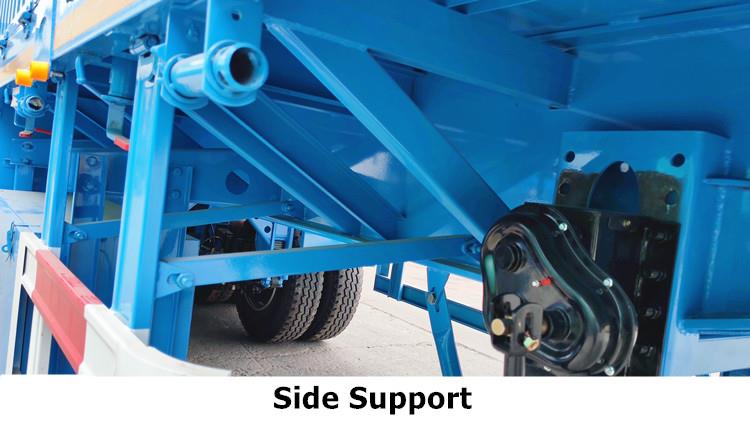

Landing Gear: JOST brand

Main Beam: Height: 500mm, Upper plate:14mm, Middle plate:8mm, Bottom plate:16mm, Material:Q345B steel

Bottom Side Beam: 16mm or 18mm steel channel (material: Q235 steel)

Platform: 3mm-thick checkered plate

Brake Chamber: WABCO

Valve: WABCO valve

ABS: Optional

Light: LED light

Voltage: 24V

Socket(Receptacle): 7-pin Socket (for 7 wire harness)

Tool Box: 1m x 0.5m x 0.5m (The tool box contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar. Its size can be tailored to suit your needs)

Painting: Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats
