The fence semi trailer has a variety of transportation functions and good ventilation performance which can provide a good air circulation environment for the items carried during transportation. The feature makes particularly suitable for goods that need ventilation and preservation, such as live poultry, fresh fruits and vegetables. In addition, the type of fence trailer is not limited to the transportation of agricultural and sideline products, but can also be used as an ordinary freight fence cargo trailer.
Stake Fence Cargo Semi Trailer for Sale in Ghana Accra
Stake Fence Cargo Semi Trailer for Sale in Ghana Accra
Dimension: 11900mm*2500mm*3800mm
Loading capacity: 60 ton

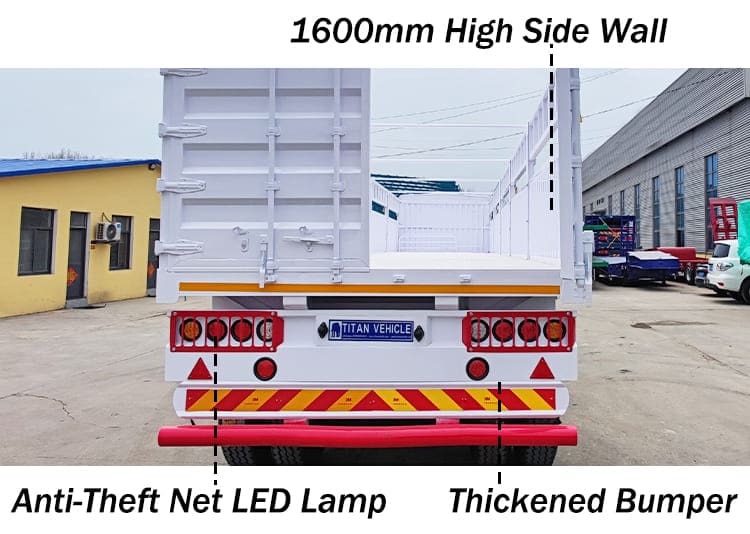

Side wall: 1600mm high
Leaf Spring: 10 layers

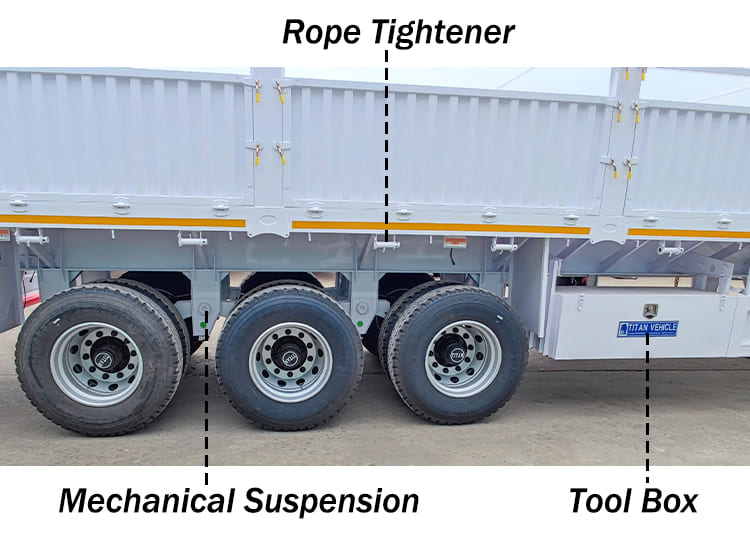

Suspension: mechanical suspension
Tire: 12R22.5, 12 units
Axles: 3 axles, TITAN brand
Landing Gear: 28 ton
Bumper: thickened bumper
Lamp: LED lamp with anti-theft net
In terms of structural design, the cargo semi trailer has high flexibility. The side wall adopts a detachable design. According to the needs of different transportation tasks, users can freely disassemble and assemble the side wall, which provides great convenience for the loading and unloading of goods. The structure is also easy to clean and maintain, extending the service life of the whole semi cargo trailer.
The stake semi trailer railings, like other parts of the stake semi trailer body, are made of high-strength steel. The material has good tensile strength and hardness. Under heavy load, the fence semi trailer can effectively prevent the railings from bending or deforming due to excessive force, and enhance the durability of the cargo semi trailer body in harsh transportation environments.
In terms of welding technology, the fence trailer main beam is processed using automatic welding technology. The welding method can ensure that the depth of the weld is consistent, thereby improving the overall structural strength of the beam. The integration of the main beam structure is not only conducive to improving the torsion resistance of the fence cargo trailer, but also helps to maintain the stability of the semi cargo trailer body under heavy-load transportation environments and reduce the risk of structural deformation.

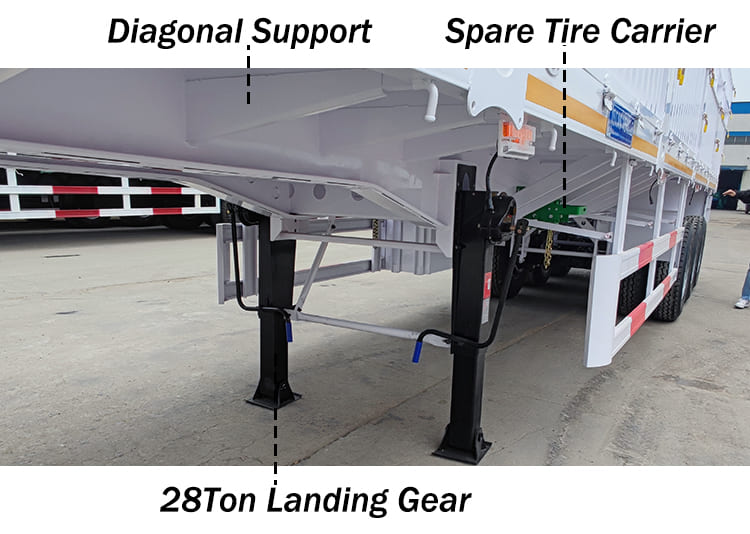

The fence trailer cross member is connected to the main beam through diagonal braces to form a stable chassis structure. The spacing between the diagonal braces is controlled within 500 mm. The design helps to evenly distribute the load and prevent the deformation of the fence semi trailer caused by excessive local stress. At the same time, the cross member uses 100 mm thickened channel steel, which not only improves the overall load-bearing capacity, but also further enhances the compressive performance of the chassis, making more suitable for high-intensity use requirements.
The material selection of the fence cargo trailer floor plate also fully considers the characteristics of the transported goods and road conditions. Faced with a rugged road environment, an ordinary smooth floor is prone to cause the goods to slide or even overturn. Therefore, the floor is made of patterned steel plates, which not only increases friction and improves the stability of the goods during transportation, but also takes into account the appearance. The use of high-strength steel also brings higher bearing capacity and impact resistance, and at the same time has certain corrosion resistance. Even in wet or bad weather conditions, the fence cargo trailer can maintain a good use state and reduce the occurrence of rust problems.

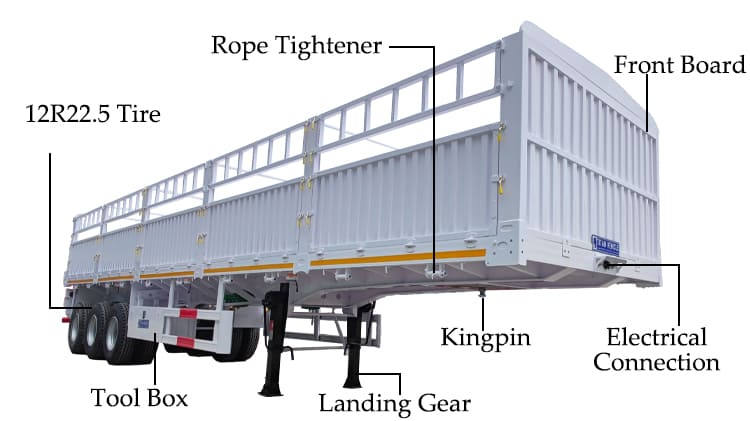

The cargo semi trailer is also equipped with a special tool box for storing tools and other items needed during transportation. The design avoids tools and debris occupying the cab or cargo platform space, and improves space utilization. The tool box has sufficient capacity to accommodate loading and unloading or simple maintenance tools, and is equipped with a lock hole design to help ensure the safe storage of items.
To protect the semi cargo trailer from rusting during shipping, TITAN takes extra waterproofing precautions that are not commonly offered by other manufacturers. Before delivery, TITAN applies a protective wax coating and covers the entire stake semi trailer with waterproof tarpaulins. The measures help prevent corrosion caused by exposure to seawater and sea breeze during maritime transport.
