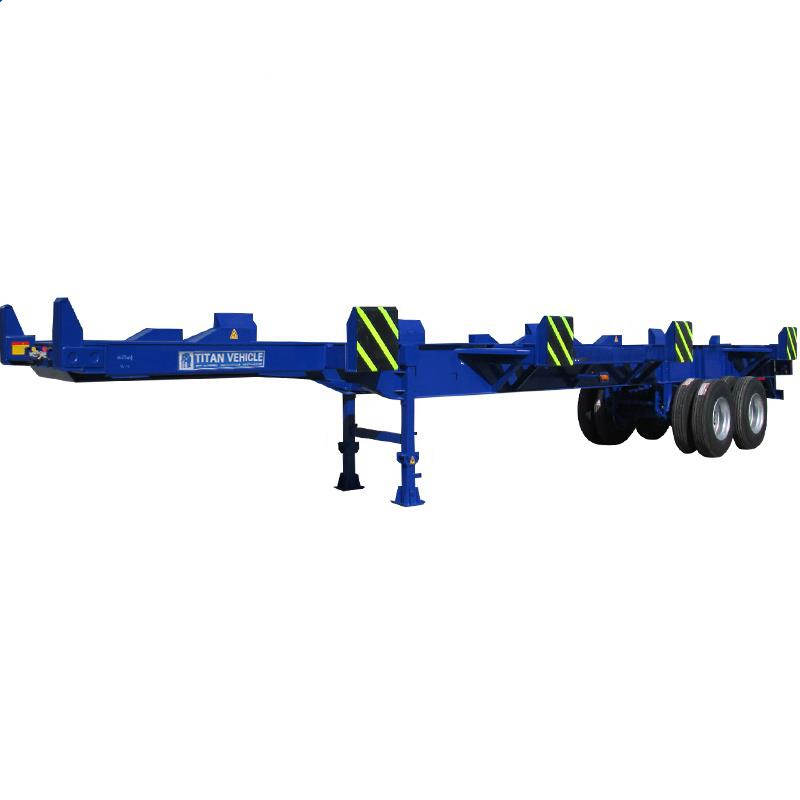

Bomb Cart Trailer for Sale

Product Description：

40ft Bomb Cart Trailer for sale is an economically feasible and practical trailer to use. This is an invention that offers a truck chassis for loading and offloading high weight containers without much effort. It has a simple structure. It comprises a simple truck chassis but of rugged construction.

This Bomb Cart Trailer is adjustable to meet your desired maneuverability conditions for loading and offloading. Adjustments to axle spacing can also be made based on your needs.

Terminal Port Trailer is mainly used in ships, ports, routes, roads, transit stations, bridges, tunnels, matching multimodal logistics system.

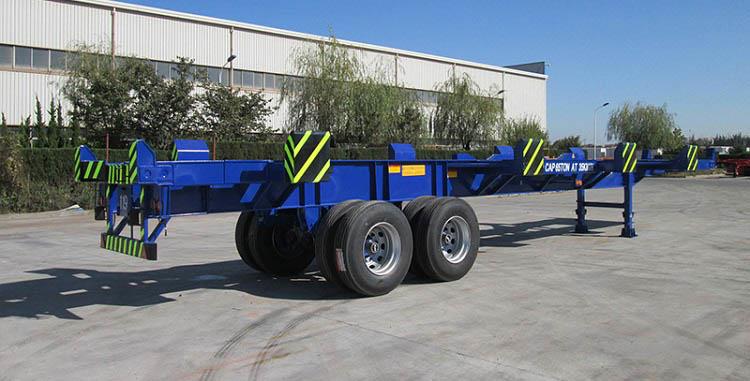

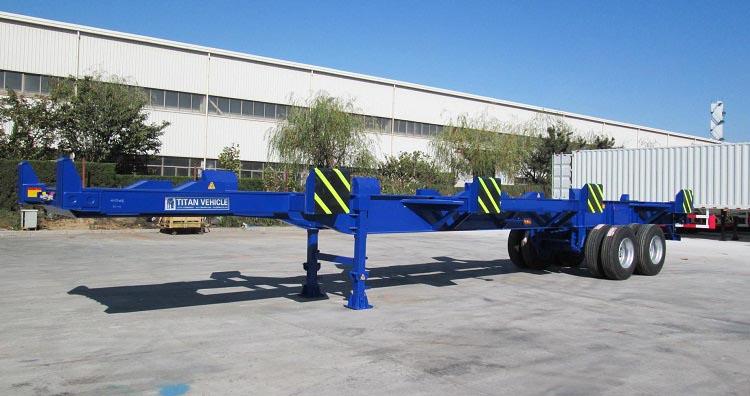

Yard Terminal Port Bomb Cart Trailer for Sale in Ghana

Specification：

Dimension(mm): 12500*2500*1530mm

Loading capacity(ton): ≤40T

Axles: 2 axles, 13T/16T ,FUWA/ BPW/ TITAN Brand

Tire: 8 units, 12.00R22.5 or 315/80R22.5

Rim: 9.00-22.5 or 9.75-22.5

Suspension: Mechanical suspension

Spring Leaf: 90(W)mmx13(Thickness)mmx10 layers or 100mmx12mmx12 (specially intended for overseas markets)

King Pin: JOST brand 2.0 or 3.5 inch (bolted or welded)

Landing Gear: JOST brand D200T or Chinese brand 28tons(double-speed)

Main Beam: Height: 500mm, Upper plate:14mm, Middle plate:8mm, Bottom plate:16mm, Material:Q345B steel

Brake Chamber: WABCO RE 6 relay valve; T30/30+T30 spring brake chamber(TKL brand), 45L air tank

Twist Locks: 4,8,12 sets (lifting or screw type)

Valve: WABCO valve (specially intended for oversea market)

ABS: Optional

Light: LED light (specially intended for oversea market)

Voltage: 24V

Socket(Receptacle): 7-pin Socket (for 7 wire harness)

Painting: Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats

Tool Box: 1m x 0.5m x 0.5m (The tool box contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar. Its size can be tailored to suit your needs)

Through these videos, you can learn about different types of container chassis trailers, as well as the process, testing, packaging and customer feedback, etc.

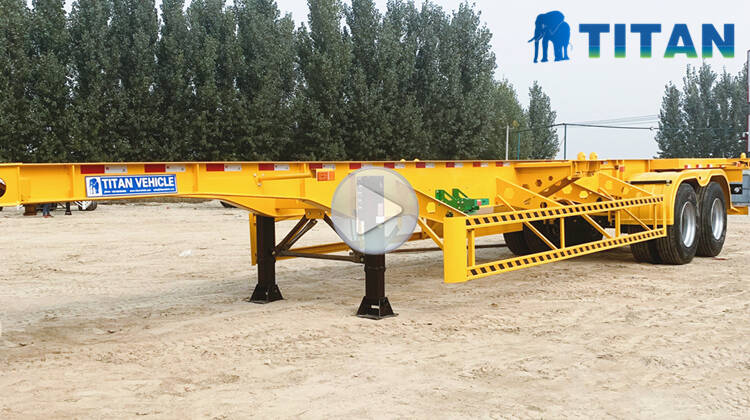

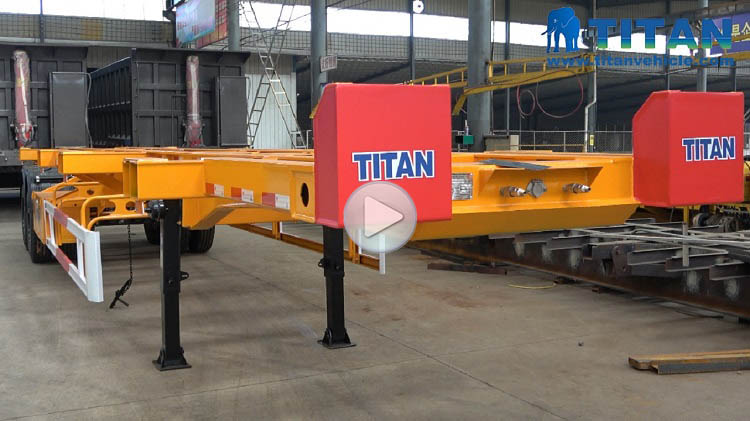

Container Terminal Trailer details display video

Welcome to leave your inquiry!

We will provide more details, price, catalog, drawing, videos for you!
