The reduced deck height of the low bed trailer significantly enhances transport safety by lowering the center of gravity of the loaded equipment. The design greatly reduces the risk of incidents like rollovers or collisions, especially during sudden braking or tight cornering.
The low bed trailer for sale is specifically engineered for the efficient long distance transport of large-scale equipment and heavy machinery. Due to its durable build and practical features, tri axle low bed trailer for sale finds widespread use across several industries such as construction, agriculture, and industrial logistics in Ghana.

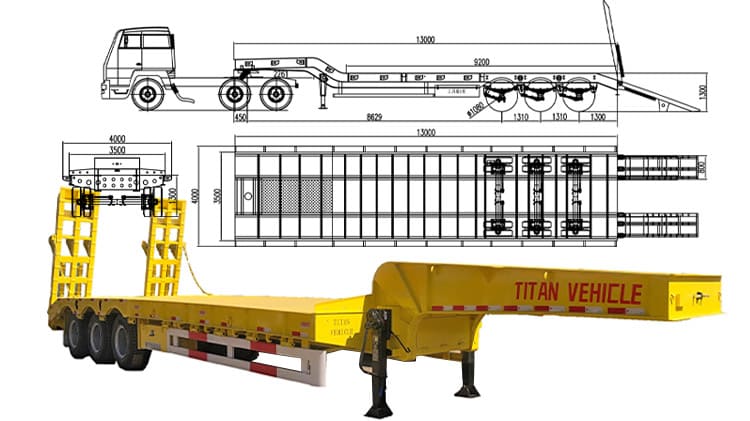

Overall Dimension: 14300mm*3000mm*1710mm
Load Capacity: 60 ton
Floor Plate: 5mm thick pattern plate
Landing Gear: 28 ton, FUWA brand
Axles: 3 axles, 13ton, TITAN brand
Tire: 12 units, 10.00R20
Ramp: 16mm thickened spring ramp

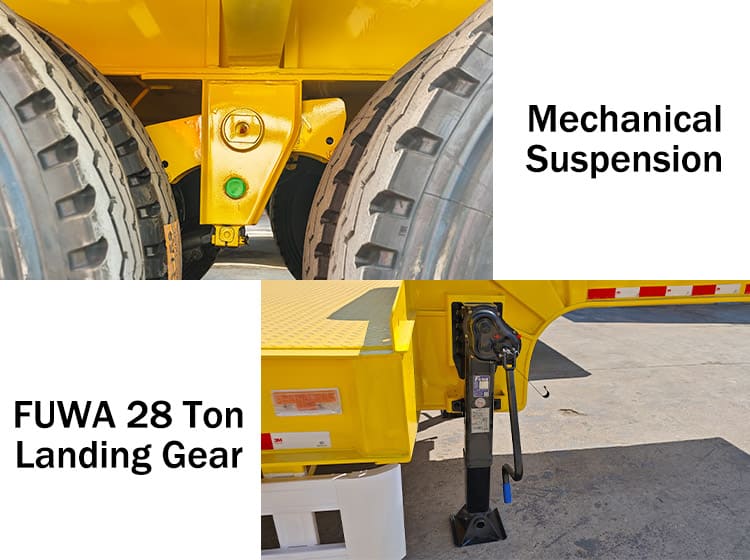

Suspension: mechanical suspension
Leaf Spring: 10 layers
Lamp: LED Lamp
A prominent structural strength of the low bed trailer price lies in its frame, which incorporates an ultra-low center of gravity. The configuration enhances balance and steadiness when carrying heavy cargo. Additionally, the floor of the low bed trailer is constructed with ample thickness, allowing to support substantial weight while ensuring reliable and secure performance on the road.
The deck surface features a 5mm thick patterned steel plate. The textured design increases surface friction, which helps prevent cargo slippage. At the rear of the low bed trailer price, horizontal anti-slip bars are added to create a layered anti-movement system. These two features work together to keep the machinery stable not only during loading and unloading but also throughout transit.
Compared to commonly used 4mm floor plates, the 5mm plate used in TITAN tri axle low bed trailer for sale offers notable improvements in both weight-bearing strength and resistance to slipping. These enhancements contribute to greater safety and operational reliability during transportation.
Another important component is the traction plate that links the low bed trailer price to the towing truck. TITAN builds this part using a solid piece of 12mm thick steel. The one-piece design resists cracking and maintains durability under high tension.
The low bed trailer for sale also allows the plate to flex appropriately while maintaining a secure connection with the tractor, even when the low bed trailer is exposed to sudden braking or uneven road conditions in Ghana.
The tri axle low bed trailer for sale is supported by robust landing gears, which are designed to handle a dynamic lifting load of 28 tons and a static load capacity of 60 tons. These landing gears come with a broad base, distributing the weight evenly and lowering the pressure on soft or uneven ground. This makes the low bed trailer more adaptable to different terrains, including sand, mud, or gravel surfaces, which are often encountered in places like Ghana.

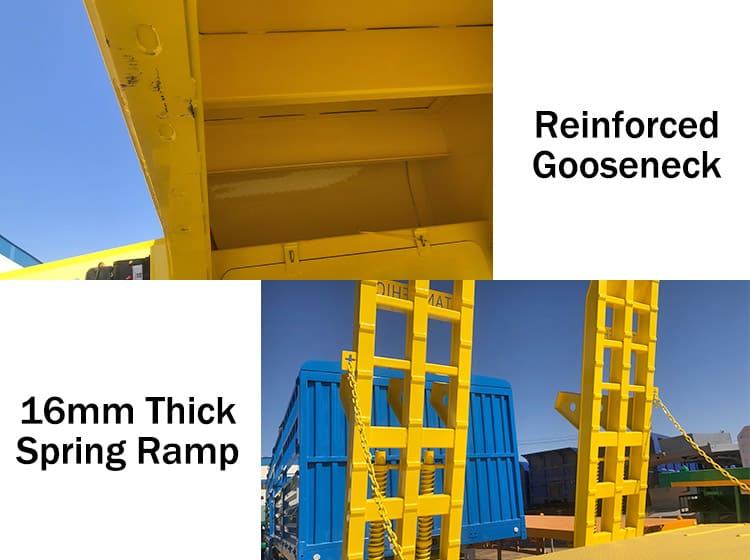

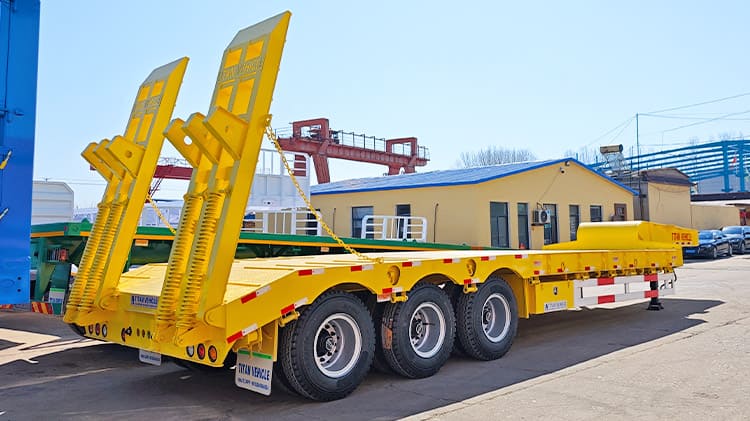

To streamline equipment loading, the low bed trailer for sale is fitted with a spring ramp system. The system takes advantage of spring elasticity to adjust automatically, ensuring smooth and even ground contact as the ramp is deployed. The ramp design supports stable loading angles, which are crucial when dealing with bulky or unbalanced machinery.
The ramp is further strengthened by 16mm spring reinforcements, allowing to absorb the force generated by heavy equipment during loading. Thanks to its efficient structure, the ramp can be operated by a single person, which improves workflow and reduces the time required for setup.
For added security during transit, a rope tightening system is integrated with the reinforced trailer floor. The setup forms a multiple-point securing method that helps to lock down the equipment and prevent unwanted movement. The system plays a crucial role when the low bed trailer for sale navigates sharp turns or has to stop abruptly, minimizing the risk of equipment shifting or damage.
To safeguard the TITAN tri axle low bed trailer for sale during international shipping, TITAN has developed a dual-layer protection approach. Each low bed trailer is first coated with protective wax to combat moisture exposure. Afterward, a waterproof and weather-resistant fabric cover is applied, offering an extra shield against harsh environmental conditions during transit over sea or land.
