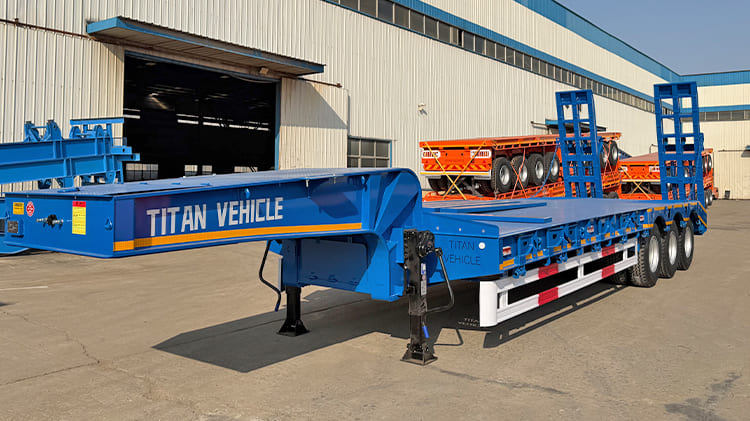

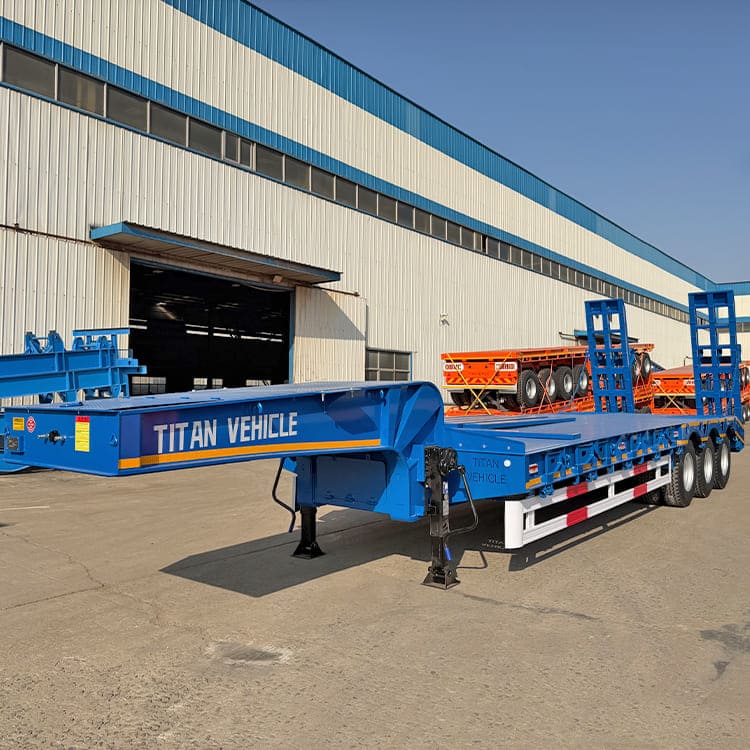

The low bed truck for sale adopts a fully open-frame platform that eliminates the traditional side walls and roof structures common in enclosed transport vehicles. This open configuration provides unobstructed height clearance, making it possible to move oversized construction equipment, tall industrial components, and irregularly shaped machinery that cannot be accommodated by standard trailers. The layout improves loading efficiency and greatly expands application flexibility, allowing the low bed truck to serve the mining, construction, and engineering sectors across Ghana with increased reliability and adaptability.

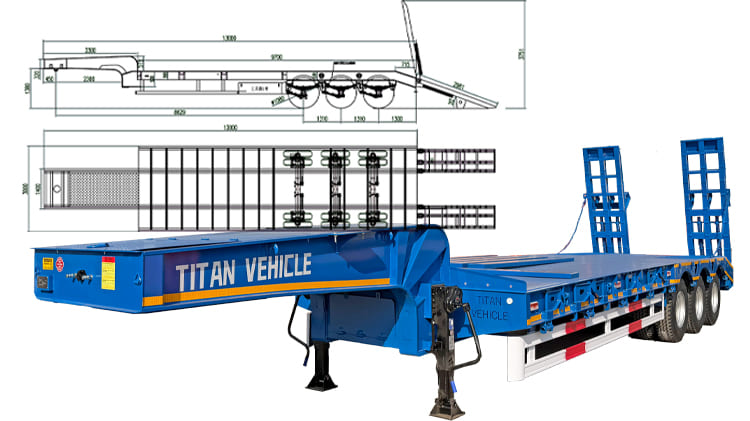

Overall Dimension: 13000mm*3000mm*3400mm
Load Capacity: 60 ton
Floor Plate: 5mm thick pattern plate
Side Beam: 300mm high, 8mm thick
Axles: 3 axles, 13ton, BPW
Tire: 12 units, 12R22.5
Ramp: thickened spring ramp
Landing Gear: 28 ton
Leaf Spring: 10 layers
Suspension: mechanical suspension
Lamp: LED Lamp
At the structural core of the low bed truck lies its high-strength alloy steel main beam. This premium alloy provides far superior yield resistance and tensile performance compared to traditional carbon steel, ensuring that the framework remains rigid even under severe load pressure.

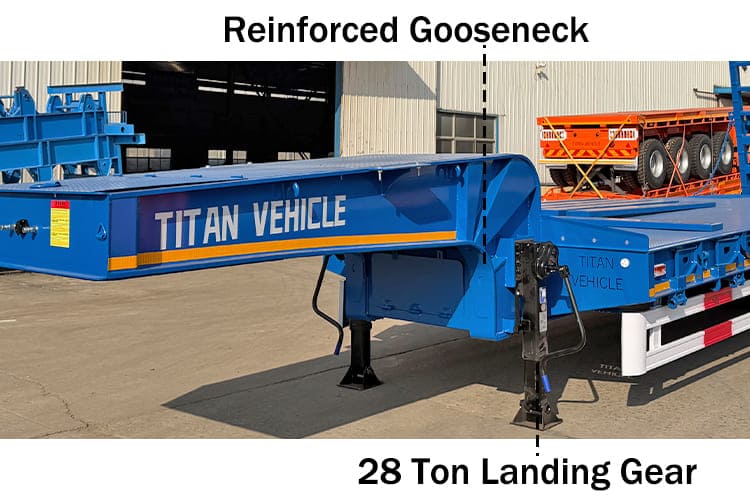

This foundation is paired with a dual-reinforced gooseneck, engineered to withstand concentrated stress forces and prevent deformation when navigating uneven terrain in Ghana's heavy-duty transport zones. The enhancement also ensures better chassis stability and safer long-distance operation, especially when the low bed truck for sale is carrying massive earthmoving equipment or mining machinery.
Further strengthening the frame is a system of crossbeams made from high-strength structural steel, evenly spaced at 500 mm intervals. These crossbeams work together with diagonal supports to distribute stress more evenly, reduce fatigue accumulation, and extend the working life of the low bed truck price platform. This reinforcement is particularly important for operators in Ghana, where transportation routes frequently include rugged, unpaved, or heavily eroded roads.
The landing gear is another key performance component of the low bed truck. Designed with a lifting capacity of 28 tons and a static load rating of 60 tons, this gear ensures stable support during loading, unloading, and parking. The multi-directional pressure-dispersing base plate enhances ground contact and prevents sinking when the low bed truck for sale operates on soft soil, gravel, or sandy construction zones—conditions that are common in many regions of Ghana.
Cargo safety is reinforced by a full set of side-mounted tensioners that run along the length of the deck. These provide multiple secure tie-down positions, ensuring that heavy machinery remains firmly fixed during transport.

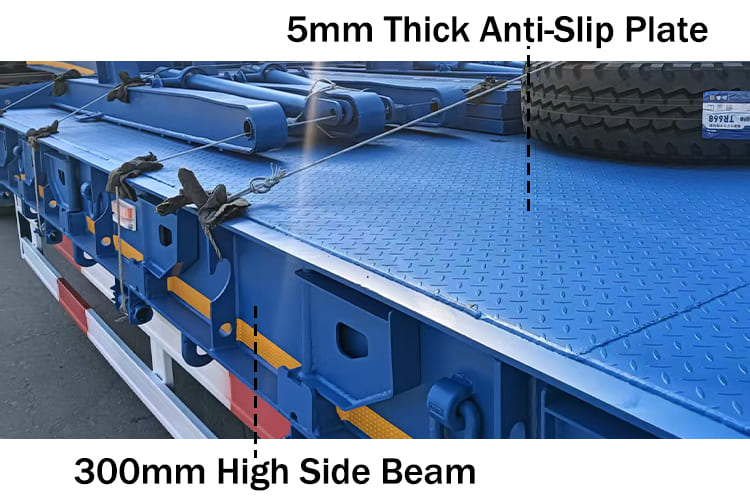

The deck surface itself is upgraded to 5 mm patterned steel, offering improved friction and stronger grip than standard flooring materials. At the rear, a layered anti-slip support structure keeps equipment stable during ramp operations—another major advantage when navigating Ghana's demanding terrain.
To absorb constant road vibration and protect the chassis, the low bed truck price model uses a heavy-duty mechanical suspension built with thickened, high-strength leaf springs. This configuration enhances ride comfort, reduces structural stress, and prolongs the service life of the low bed truck even when traveling across gravel roads, mountainous regions, or congested urban routes in Ghana.

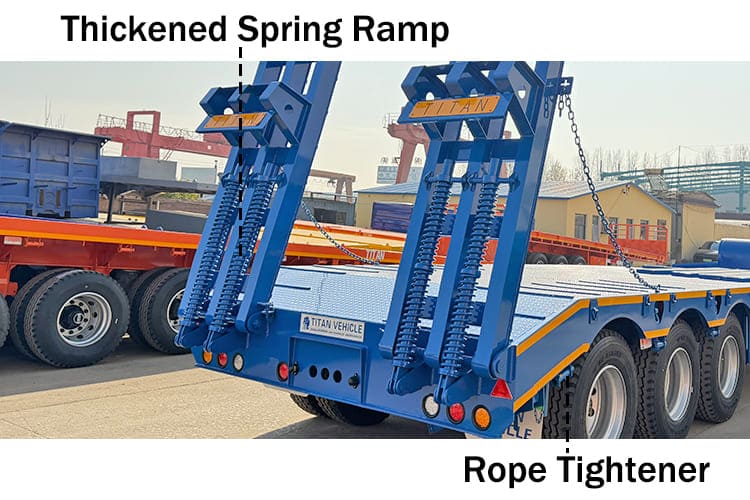

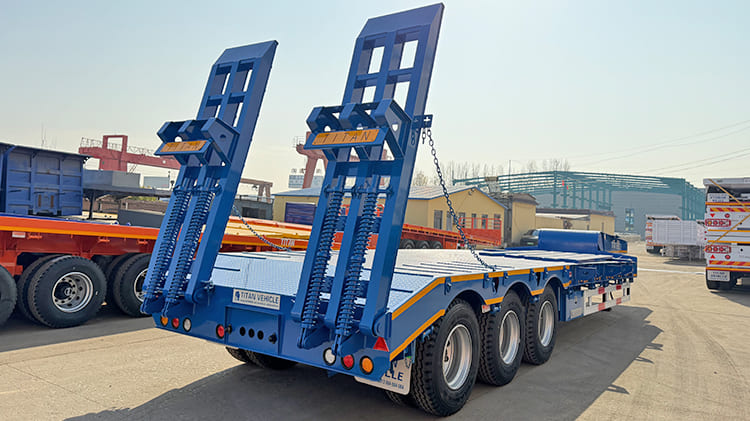

A highlight of the rear structure is the upgraded spring-assisted ramp system. Manufactured with 16 mm hardened steel and equipped with an adaptive angle-adjusting mechanism, the ramps allow smooth and controlled loading of machinery. Their design reduces impact force, increases operational safety, and enables single-operator control—making the low bed truck for sale especially valuable for large logistics fleets and high-frequency equipment transporters.
To guarantee that every unit arrives in perfect condition, TITAN applies a comprehensive export-grade protection process to each low bed truck for sale. The entire chassis is coated with specialized anti-corrosion wax designed to protect the steel framework from moisture, humidity, and salt exposure during sea transportation.
After waxing, the entire surface of the low bed truck price unit is enveloped in a reinforced waterproof tarpaulin, forming a double-layer defense mechanism that preserves both structural integrity and exterior appearance throughout the shipping journey.
