Engineered to accommodate both 20 ft and 40 ft containers, the 3 axle flatbed semi trailer plays a critical role in connecting port terminals to inland logistics systems. Its structure is designed to distribute cargo weight evenly across the flatbed semi trailer for sale frame, reducing pressure concentration at specific points which helps prevent deformation or fatigue in the frame over time, which contributes to a longer service life and consistent performance under frequent or heavy use.
Dimension: 12500mm*2500mm*1550mm

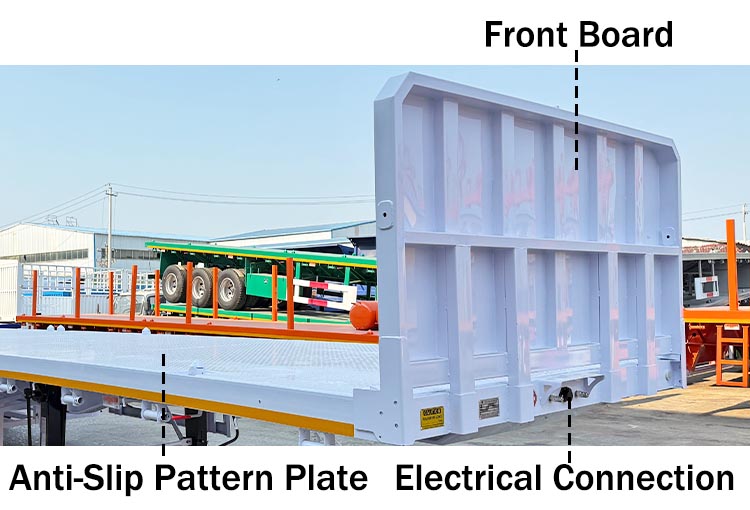

Trailer Future: with front board
Loading capacity: 60 ton
Side Beam: 160mm high
Axles: 3 axles, TITAN brand, 13 ton
Tire: 385/65R22.5, 12 units
Suspension: mechanical suspension
Leaf Spring: 10 layers

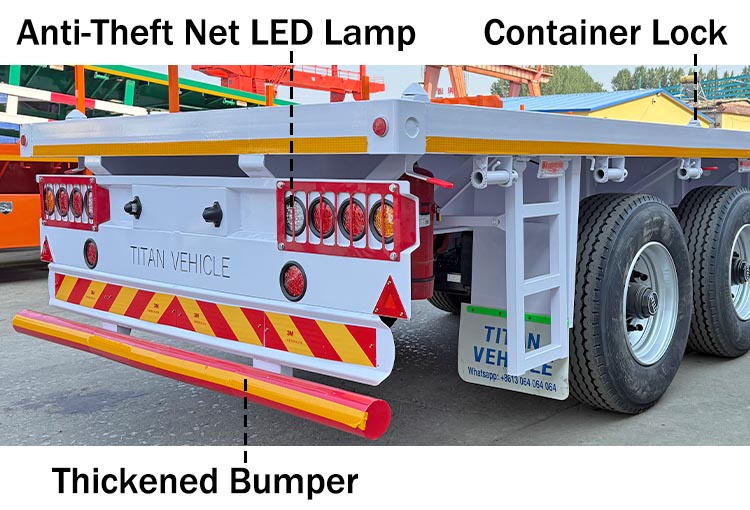

Bumper: 4mm thickened bumper

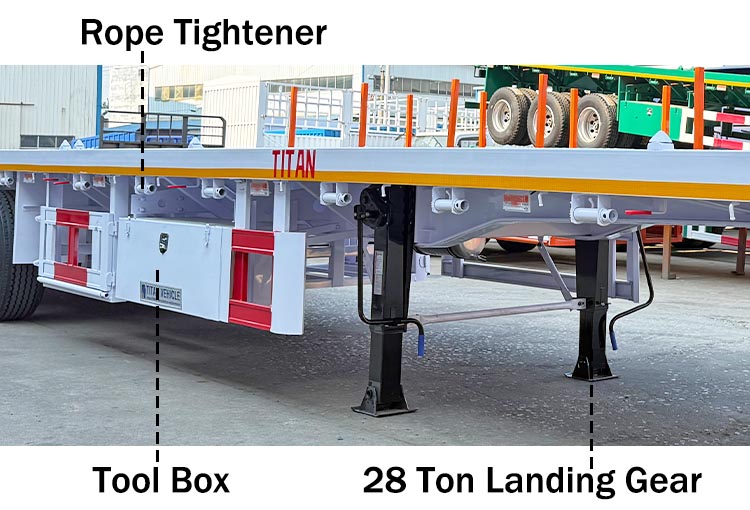

Landing Gear: 28 ton
Lamp: LED lamp with anti-theft net
To protect against corrosion caused by long-distance sea transport, TITAN implements a dual-stage preservation method prior to shipping. Each unit is first coated with anti-corrosion wax and then wrapped with a waterproof covering. The layered protection shields the 3 axle flatbed semi trailer from moisture, sea spray, and salty air during maritime shipping. As a result, flatbed semi trailer manufacturers can arrive at their destination in excellent condition, minimizing the need for post-shipment maintenance.
TITAN offers two main transportation options for the flatbed semi trailer for sale: containerized delivery and roll-on/roll-off (RORO) shipping. The flexible logistics arrangement allows Ghana buyers to select the most practical and cost-effective method depending on regional port conditions and delivery deadlines, optimizing transport efficiency.
The surface treatment of the flatbed semi trailer for sale plays a significant role in its long term durability. A combination of powder coating and high-temperature baking paint is used to finish the exterior. Though more expensive than traditional painting methods, the finish offers increased resistance to wear and fading, and also retains its gloss and color under strong sunlight, which is especially important in sunny and humid environments such as Ghana. The surface technology reduces repainting frequency and lowers long term maintenance costs.
The flatbed semi trailer manufacturers is constructed with durability in mind. Its main beam is fabricated from Q355-grade low carbon high-strength alloy steel, providing superior rigidity and load-bearing performance. To further enhance strength, TITAN applies submerged arc welding to assemble the main structural parts. The welding method produces cleaner joints with better penetration, which improves the overall strength of the flatbed semi trailer manufacturers and ensures better resistance to stress and impact over time.

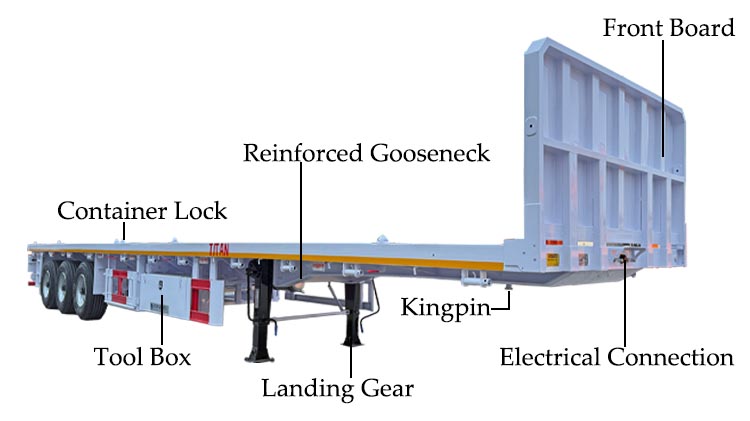

Reinforcement has been added to high-stress zones of the frame, especially around the gooseneck area where load pressure tends to be highest. By using double-layer support in the sections, the 3 axle flatbed semi trailer maintains stability even when carrying heavy or oversized equipment. The structural reinforcements enhance the flatbed semi trailer for sale durability and operational reliability under Ghana complex transport conditions.
The chassis of the 3 axle flatbed semi trailer is further strengthened through a layout of cross members and diagonal bracing. These components are spaced at intervals of no more than 500mm to ensure that weight is evenly distributed across the entire frame. Each cross member is made from 100mm-thick channel steel, providing solid support for the deck and helping to maintain the flatbed semi trailer manufacturers shape and strength during loading and travel.
One of the flatbed semi trailer for sale key functional advantages is its flat, open platform design which allows to handle different types of cargo, including containers and irregularly shaped bulk items. The deck includes 12 container twist locks pre-installed, configured to secure both 20 ft and 40 ft containers. The feature simplifies the loading process, reduces setup time, and ensures that cargo remains firmly locked in position during transit.
For enhanced adaptability on rough or uneven roads, especially in regions like Ghana, the 3 axle flatbed semi trailer is equipped with 13-ton axles known for the durability. These axles absorb vibrations and help stabilize the trailer on bumpy or unpaved surfaces. In addition to providing strong load capacity of 60 tons, minimize the risk of structural failure caused by overloading or continuous jolting, contributing to both safety and operational efficiency.
