Multi Axle Low Bed Trailer

Hydraulic Low Bed Trailer

For fleets that prioritise longevity, safety and operational flexibility, the hydraulic low bed platform is a strategic investment. In heavy haul logistics across Ghana, the hydraulic low bed trailer has become indispensable for moving oversized machinery and project-critical components because it combines immense load capacity with refined control systems and robust build quality. The multi axle low bed trailer form factor delivers stability and efficiency where conventional trailers simply cannot match the demands of modern heavy transport.

Hydraulic Multi Axle Low Bed Trailer for Sale in Ghana

Hydraulic Multi Axle Low Bed Trailer for Sale in Ghana

Spec of Hydraulic Low Bed

Usage: transport heavy duty cargo&equipment

King pin: 3.5 inch bolt-in king pin

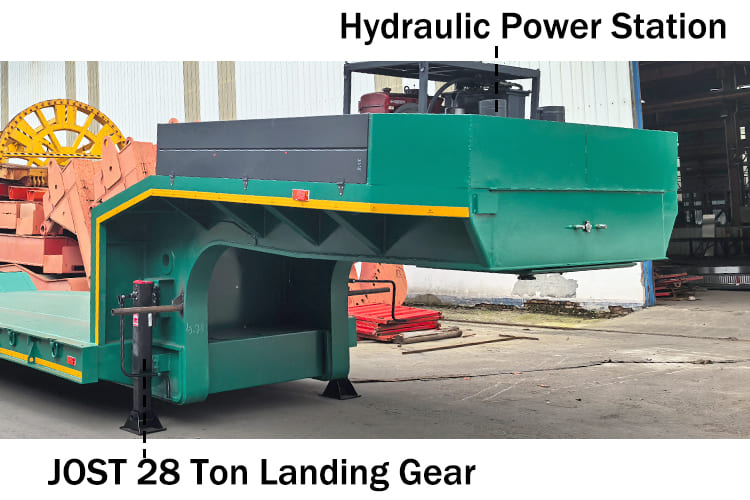

Hydraulic Power Station: 13.2Kw

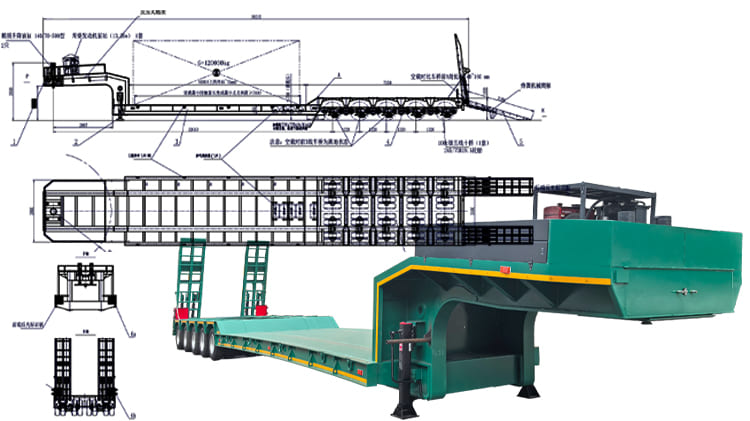

Dimension: 19215mm*3100mm*2600mm

Max Payload: 120 tons

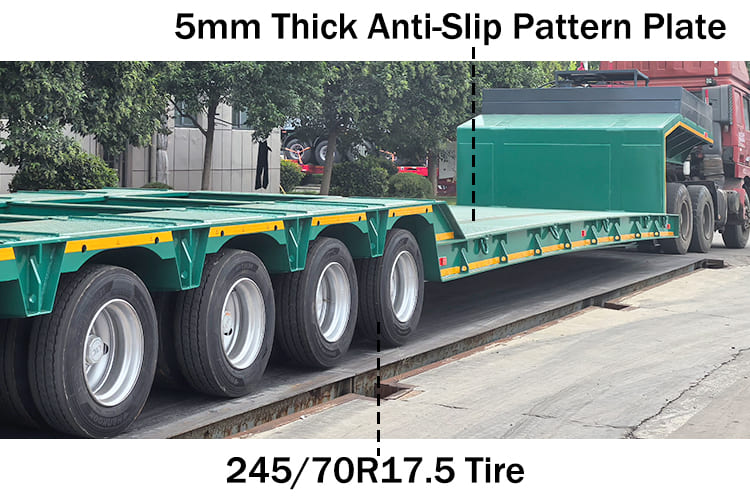

Tires: 41 units, 245/70R19.5 Tire

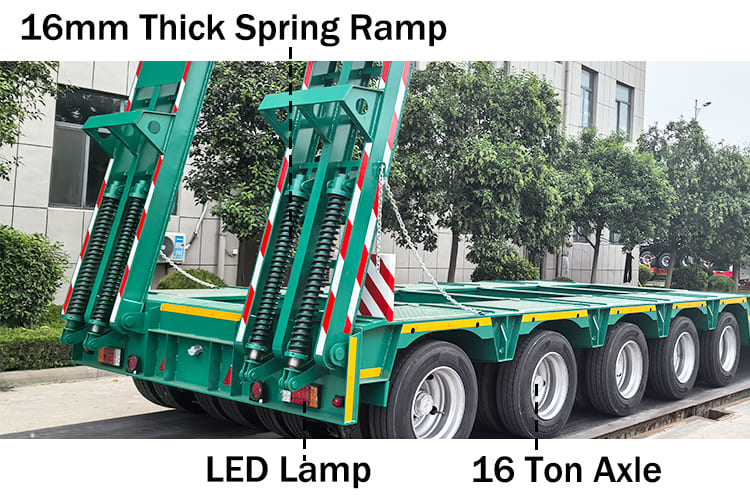

Axle: 5 line 10 axles, 90T

Advantage of Hydraulic Low Bed

The strength of the hydraulic low bed begins with material selection and chassis engineering. TITAN constructs the main beams and primary deck members from high-tensile structural steel, producing a frame that resists torsion and spreads loads evenly across the span. That engineered stiffness prevents localised deformation and ensures the hydraulic low bed trailer maintains straightness and predictable handling after repeated heavy cycles. When an operator chooses a multi axle low bed trailer, they get a platform that sustains structural integrity under asymmetric loads and extended service life.

Suspension and axle design are critical to the hydraulic low bed's performance. Each axle line on a modern hydraulic low bed trailer is paired with independently controlled hydraulic suspension, giving operators the ability to adjust deck height and balance for optimal ground contact.

This intelligent hydraulic control reduces dynamic loads transmitted to the cargo and the trailer frame, which is especially valuable on Ghana's varied road network. A well-tuned multi axle low bed trailer delivers safer transit for delicate or high-value equipment while reducing wear on mechanical components.

Maneuverability sets the hydraulic low bed apart from many heavy-haul alternatives. Advanced units use pendulum axles and steerable hydraulic wheel groups so the hydraulic low bed trailer can negotiate tight sites and complex delivery locations with minimal repositioning.

Individual axles can be steered in isolation or in coordinated groups, yielding precise path control and predictable trailer behaviour even at full payload. For project teams in Ghana, this agility reduces on-site handling time and improves placement accuracy.

Modularity expands capability: the multi axle low bed trailer can be coupled end-to-end or linked side-by-side to create extended platforms or wider decks. Heavy-duty couplings and interlocking pins form a cohesive structure that behaves as a single unit under load.

This flexibility enables a single fleet to handle a wider variety of loads, from long turbine blades to broad refinery vessels, reducing the need to maintain multiple specialised trailers. For operators in Ghana, that means better asset utilisation and lower fleet ownership costs.

Operational safety is further enhanced through active hydraulic leveling and real-time monitoring. The hydraulic low bed trailer keeps the deck level despite shifting loads or uneven ground, lowering the centre of gravity during transport and improving stability through corners and on slopes.

Integrated sensors report deck height, axle stroke and weight distribution back to the driver, enabling immediate correction and synchronized control across steering, suspension and hydraulics. This connected approach keeps the hydraulic low bed working predictably and helps prevent overload or dangerous load shift events.

The hydraulic low bed family, and specifically the hydraulic low bed trailer and multi axle low bed trailer variants, provide a combination of structural resilience, precision hydraulic control, and operational versatility that makes them a cornerstone asset for heavy-haul operations across Ghana.

Shipping of Hydraulic Low Bed

TITAN protects every multi axle low bed trailer for transit and storage with a two-stage preservation process. Exposed metal is sealed with anti-corrosion wax and the whole assembly is wrapped in a waterproof tarpaulin to guard against moisture and sea air. These precautions mean that each hydraulic low bed trailer arrives in Ghana ready for immediate deployment, preserving factory calibration and reducing on-site preparation time.
