Different Parameters, Different Price. Price Reference Only.

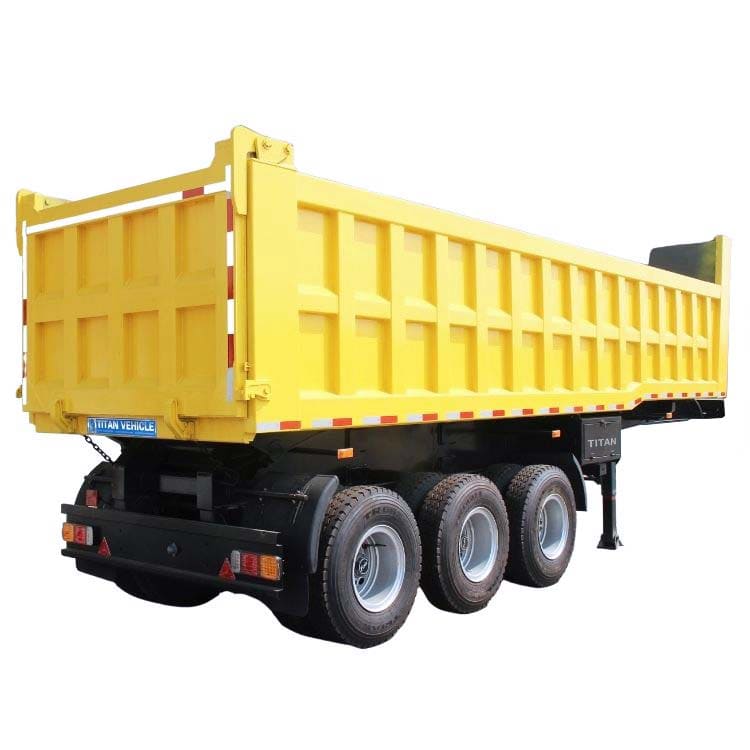

3 Axles 60 ton semi tipper trailer as known as tipper trailer, 3 Axles 60 ton semi tipper trailer structure includes chassis, box, and lifting sys. Work by PTO supply oil to the cylinder, lifting box till to design angle, cargo slide out, improve unloading efficiency.
TITAN 3 Axles 60 ton semi tipper trailer adopt high strength steel to make it durable when load the sand or small stones or rocks. And the loading capacity are 40t, 60t, 80t.
TITAN 3 Axles 60 ton semi tipper trailer equipped with reliable hydraulic HYVA cylinder. We can customize the tipper trailers according to your special need, like U shape dump, end dump, side tipper, and container tippers including skeleton and flatbeds trailers.
We use well-known brand axles, FUWA, BPW. It’s with high performance, and reliable to use.
3 Axles 60 Ton Semi Tipper Trailer for Sale Near Me in Ghana Dunkwa
3 Axles 60 Ton Semi Tipper Trailer for Sale Near Me in Ghana Dunkwa
3 Axles 60 Ton Semi Tipper Trailer for Sale Near Me in Ghana Dunkwa
3 Axles 60 Ton Semi Tipper Trailer for Sale Near Me in Ghana Dunkwa
1. Double-plate main beam for heavy-duty dump trailer, which have stronger carrying capacity, it is not easy to damage.
2. Hydraulic cylinder: The heavy-duty cylinder with a wider diameter, stronger lifting capacity and higher height, which makes the lifting more stable and does not easy to roll over.
3. with 4 units vice beam and cross balance beam. The lattice structure of the side door makes the side door more solid.
4. Flip Bracket: 4 units flip brackets, which can make the rear end more evenly loaded during unloading, and it is not easy to damage the trailer.
5. The leaf spring is widened and thickened, the shock absorption effect is good.
6. Strengthened Ribs, unique structure design to maximize the payload.

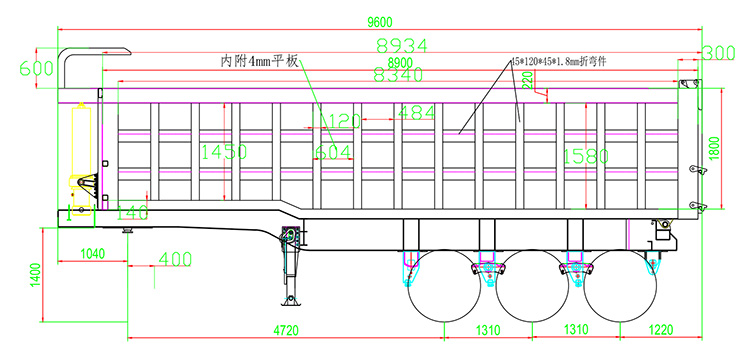

Overall dimension：9600mm * 2500mm *3950mm
Volume : 60T
Axles：3 axles
Suspension： Heavy duty mechanical suspension
Tipping system: 196 hydraulic cylinder
Tire：12 units
King pin：90#
Landing gear： JOST
Brake system: WABCO
Electrical system: 24V, LED lights
Through the video below, you can learn about different types of tipper semi trailers, such as u shape dump semi trailer, side tilted dumper trailer, container tipper trailer, tipping chassis trailer. And the process, testing, packaging and customer feedback, etc.
