40T Side Tipper Trailer

Product description:

Side tipper semi trailer for sale can be customized from 15 tons to 80 tons semi tipper trailers for sale, 80 tons to 120 tons tipper tractor trailer.

Side Tipper Trailer is designed to fall sideways for a reason, and you may be forced to unload in areas where there is not enough space.  You can use side tipper trailer to help save space. The load capacity of the side dump semi trailer may be greater than that of the rear tractor tipper trailer. Side Tipper Trailer suitable for large workplaces, 40t side tipper trailer maximum carrying capacity can reach 80-100tons.

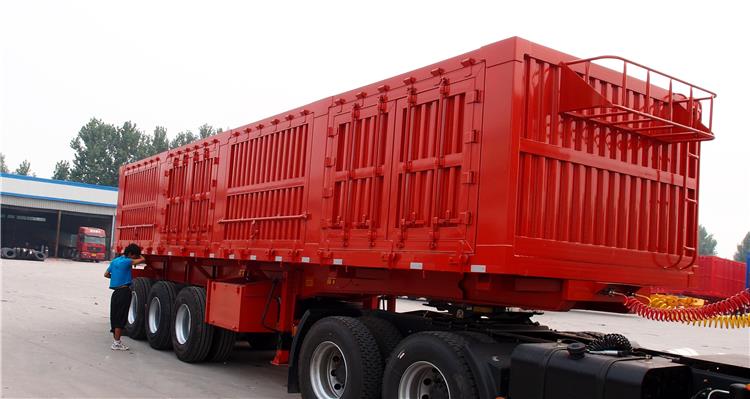

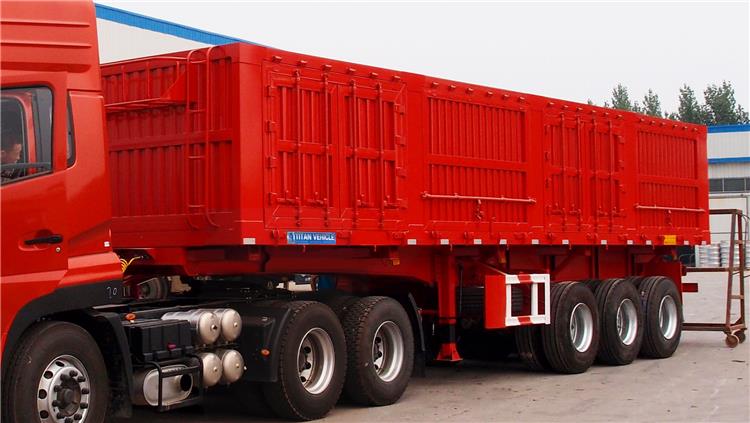

40T Side Tipper Semi Trailer for Sale - TITAN Vehicle

40T Side Tipper Semi Trailer for Sale - TITAN Vehicle

Specification:

Brand: Side Tipper Trailer

Dimension: 8500mmx2500mm x3950mm ( inside dimension )

Main beam: Height: 480mm, Upper plate: 14mm, Middle plate: 8mm, Lower plate: 14mm, Material: T700 steel.

Bottom Platform: 4 thick checkered plate

Side wall thickness: 4mm

Total volume(m³): 35m³

End plate: 8mm

Lifting System: Full set of HYVA lifting cylinder

Axle: 13T/16T, FUWA / BPW / TITAN Brand

Rim: 8.0-20 or 9.00-20

Tire: 8.25R20/10.00R20/11.00R20/12R22.5

Suspension: Mechanical suspension

Lifting system: Side lifting

Spring leaf: 90(W)mmx13(Thickness)mmx10 layers

Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)

Landing gear: JOST brand

Braking system: WABCO

ABS: Optional

Valve: WABCO valve

Light: LED light (specially intended for oversea markets)

Voltage: 24V

Tool box: 1 set
