150 Ton Removable Gooseneck Trailer with Dolly
150 Ton Removable Gooseneck Trailer with Dolly

150 Ton Removable Gooseneck Trailer with Dolly

34000 USD

TITAN removable gooseneck trailers can make the 2/3/4/6 axles lowboy trailers, with the capacity of 40/50/60/80/100/120 ton. We also can provide optional solutions for your transport requirements.

SKU: 150 Ton Removable Gooseneck Trailer with Dolly
MPN: TITAN9706004
Brand: TITAN

Product Description:

TITAN removable gooseneck trailer for transport excavator and construction equipment, large machinery transportation.

4 axle 150 ton removable gooseneck trailer with dolly main beam of TITAN is made of HG60 high-strength structural steel. The yield strength of HG60 steel is ≥ 620MPa, which is more durable and stronger than ordinary steel. Its bearing capacity is 5 times of that of Q345 steel trailer. TITAN removable gooseneck lowboy trailer adopts reinforced the gooseneck and upper and lower plate by double layer.

150 Ton Removable Gooseneck Trailer with Dolly for Sale

150 Ton Removable Gooseneck Trailer with Dolly for Sale

150 Ton Removable Gooseneck Trailer with Dolly for Sale

150 Ton Removable Gooseneck Trailer with Dolly for Sale

150 Ton Removable Gooseneck Trailer with Dolly for Sale

TITAN can make the 2/3/4 axles lowboy trailers, with the capacity of 60/80/100/120 ton. To meet your transport needs and your local regulations, we can customize different configuration removable detachable gooseneck lowboy for you.



Specification:

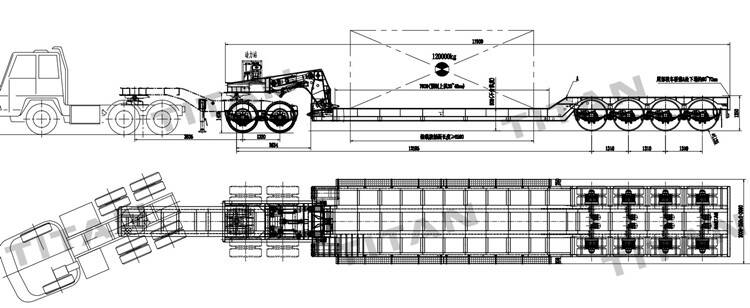

Overall dimension:17900mm * 2500+250*2mm *2200mm(platform 800mm)

Loading capacity:  150 ton

Axles:4 axles with 2 axles dolly

Tire: 16 units, 8.25R20/10.00R20/11.00R20/12R22.5

Suspension: Mechanical suspension or air suspension

Spring leaf: 120(W)mmx16(Thickness)mmx10 layers

Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)

Tare weight: About 9.5-19T

Main beam: Height: 500mm; Width: 230mm; Side beam: 250 I-beam 10/8/10; Material: HG60 high-strength steel.

Bottom Platform: 5mm thick, checkered plate

Hydraulic cylinder: 12KW diesel engine with hydraulic station

Ramp: spring or hydraulic type

ABS: Optional

Valve: WABCO valve

Light: LED light (specially intended for oversea markets)

Voltage: 24V

Tool box: 1 set

Painting: Polyurethane paint, with long service lift, and avoid the vehicle get rust

150 Ton Removable Gooseneck Trailer with Dolly for Sale

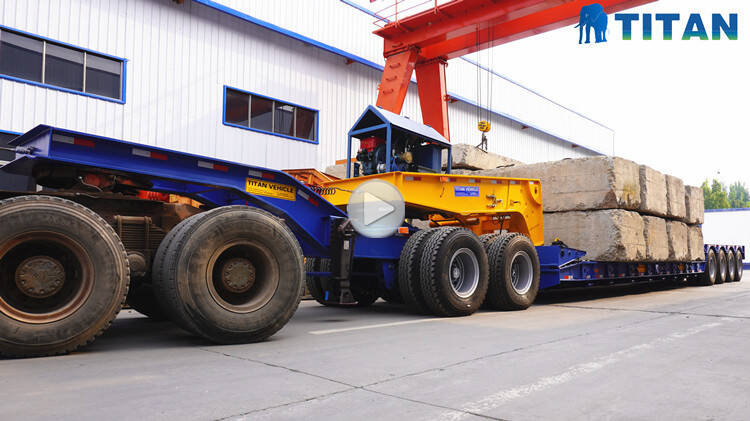

4 axle 150 ton detachable gooseneck lowboy trailer testing video display



Welcome to leave your inquiry!

We will provide more details, price, catalog, drawing, videos for you!

Feedback

Review

Mworia from Kenya - 2022-07-05T10:07:46+0800
We finally received the 150 ton removable gooseneck trailer and now trailer is working well. We are ready to place a new order with SinotrukGhana. So we are so happy that the removable gooseneck trailer is customized.
