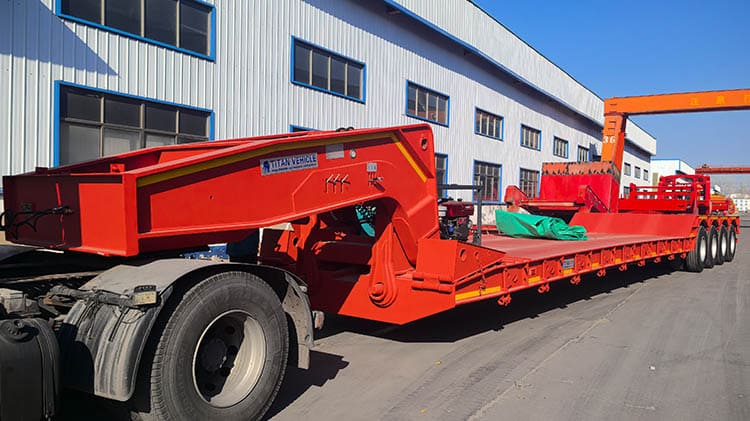

TITAN incorporates a series of advanced structural upgrades and engineering refinements to ensure that each removable gooseneck trailer performs reliably across long-distance routes and demanding work environments.
Whether navigating rugged rural highways in Ghana or transporting oversized industrial machinery in neighboring regions, the rgn gooseneck trailer is purpose-built to withstand the continual stress of heavy-equipment logistics. Its low-profile structure, reinforced connection points, and adaptable loading configuration allow the removable gooseneck system to maintain exceptional stability throughout transit.

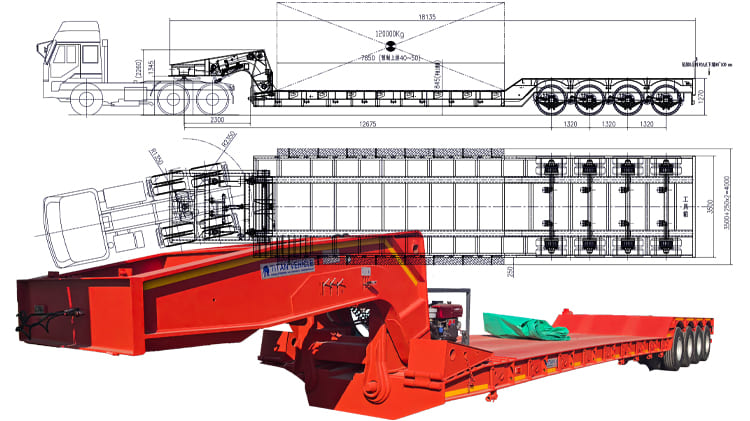

Dimension: 18670 mm*2700 mm*2300 mm
Loading capacity: 100 ton
Floor Plate: 5mm thick pattern plate
Side Beam: 300mm high

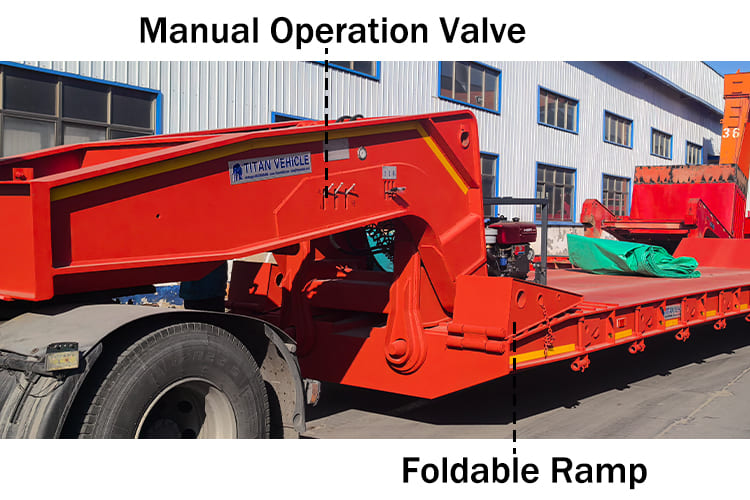

Ramp: foldable ramp
Gooseneck: removable gooseneck
Tire: 16 units, 315/80R22.5
Leaf Spring: 10 layers
King Pin: JOST brand 90#
Axle: 16 ton
Light: LED light with net

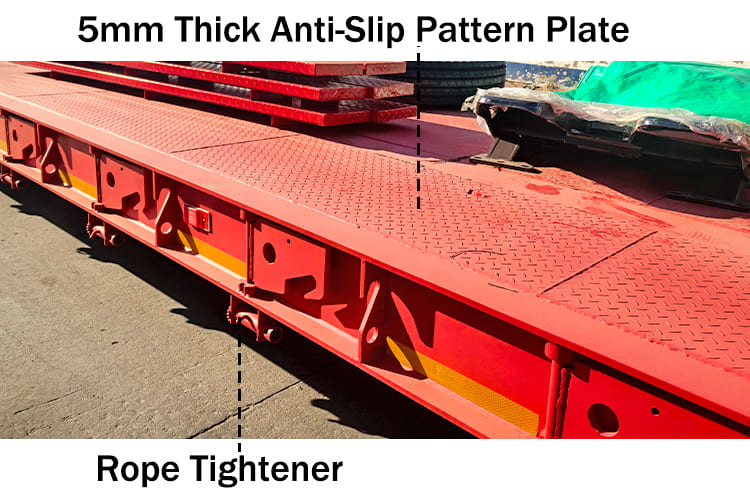

One of the defining advantages of the removable gooseneck trailer is its open and easily accessible loading platform. The reduced deck height keeps the overall center of gravity low, enhancing balance when carrying heavy excavators, drilling machines, or other oversized equipment. TITAN equips the deck with high-strength patterned steel plates to provide both secure footing and a visually clean surface. At 5 mm thick, this flooring gives the rgn gooseneck trailer increased load-bearing capability and ensures stable equipment positioning during long-distance hauls.
To protect the structure, TITAN applies a powder-spray coating followed by a high-temperature baking process. This surface treatment allows the removable gooseneck to resist color fading, abrasion, and long-term corrosion.
Such durability is especially valuable in the humid, heat-intensive climate conditions found in Ghana, where standard paint would show wear more quickly. The extended service life of the coating helps reduce ongoing maintenance for every removable gooseneck trailer.
Each 4-axle rgn gooseneck trailer features a reinforced mechanical suspension system. High-strength leaf springs help absorb impact and minimize vibration, reducing stress on both the vehicle frame and its cargo.
This enhancement is particularly beneficial when traveling over uneven or unpaved roads, ensuring that the removable gooseneck trailer remains stable even under continuous heavy loads. Operators in Ghana appreciate this level of reinforcement when hauling equipment through varied and sometimes harsh terrain.

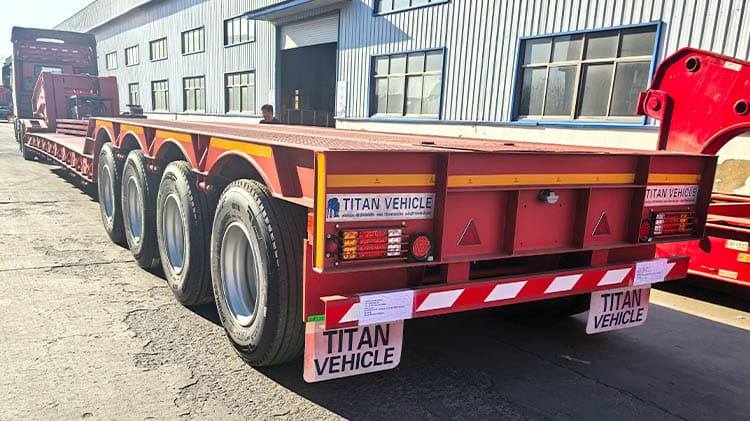

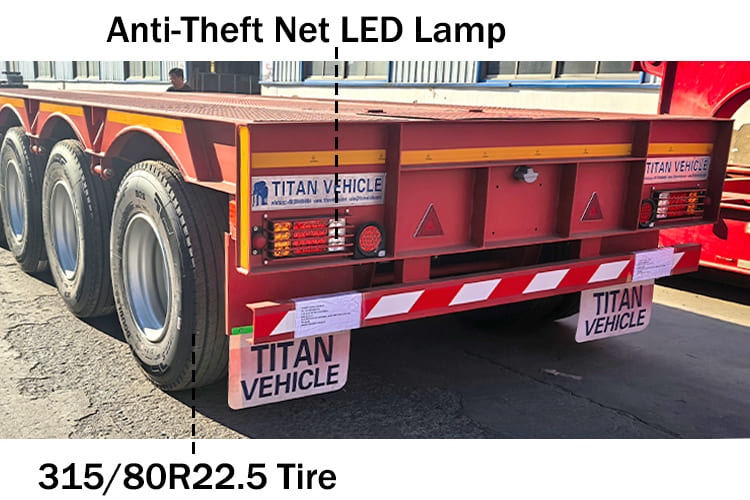

Durable LED lighting systems are installed to ensure safe nighttime operation. These high-brightness LED units provide excellent visibility while drawing minimal power. Protective anti-theft mesh covers keep the lighting components secure from damage or tampering. The lighting system’s rugged construction complements the overall endurance of the removable gooseneck.
A detachable 90# JOST kingpin provides a secure and reliable connection between the towing vehicle and the rgn gooseneck trailer. Designed for heavy-duty use, this kingpin ensures stable operation during sudden braking, steep inclines, or extended hauling periods.
The braking system itself uses high-pressure rubber air lines, which offer long-term durability and maintain reliable function for up to a decade—another factor contributing to the long-term value of the removable gooseneck trailer.
Each of the four axles is rated for 16 tons, allowing the removable gooseneck to distribute weight evenly across the entire structure. This prevents premature axle fatigue, enhances load stability, and significantly reduces frame deformation over years of heavy use.
Combined with rope-tightening devices positioned along both sides, the rgn gooseneck trailer enables operators to fasten cargo quickly and securely, even when navigating sharp turns or sudden stops.
The front traction plate is constructed from a 12 mm one-piece steel sheet, delivering excellent impact resistance and reliable towing performance. This robust design helps the removable gooseneck trailer withstand sudden shocks and irregular road surfaces, ensuring smooth and safe transport for heavy machinery.
Before international shipment, each rgn gooseneck trailer undergoes a strict anti-corrosion procedure. A protective wax coating is applied to all exposed metal surfaces, forming a moisture-resistant barrier. A custom-fitted waterproof tarpaulin is then used to fully wrap the removable gooseneck, shielding it from seawater exposure, humidity, and salt-laden winds. This dual-layer protection ensures that every removable gooseneck trailer arrives in excellent condition and ready for immediate operation.
