Chapter 1: What are the different types of low loaders?
Chapter 2: What is the function of low loader?
Chapter 3: What size is a low loader?
Chapter 4: How much is a low loader?
Chapter 5: What is the maximum load capacity of a low loader?
Categorizing the semi low loader in Ghana based on load capacity and axle configuration is a common approach for customers during the selection process. A higher number of axles or a higher nominal load capacity does not necessarily make a trailer the most suitable choice; rather, the selection should be based on a comprehensive assessment of factors such as actual cargo weight, the trailer’s own tare weight, axle load distribution, tire configuration, suspension system, and the towing capacity of the prime mover.
It is important to note that common load ratings, such as 60, 80, 100, 120, or 150 tons, are typically parameters designed to meet specific customer requirements or particular operational scenarios. Furthermore, configurations such as 3 axle, 4 axle, or 8 axle setups do not necessarily correspond to a single, fixed load capacity. Even among 3 axle semi low loader in Ghana, variations in frame strength, wheelbase, suspension, tires, braking systems, and structural design can lead to differences in actual load bearing capacity.

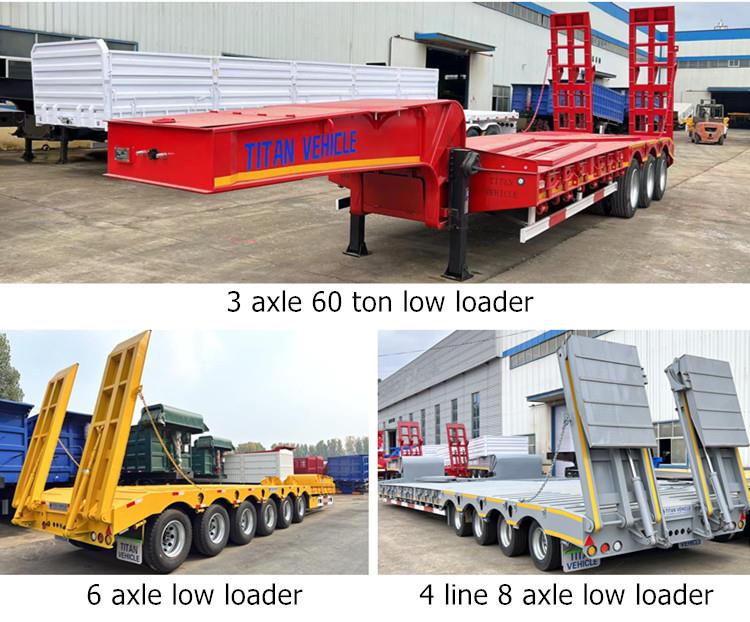

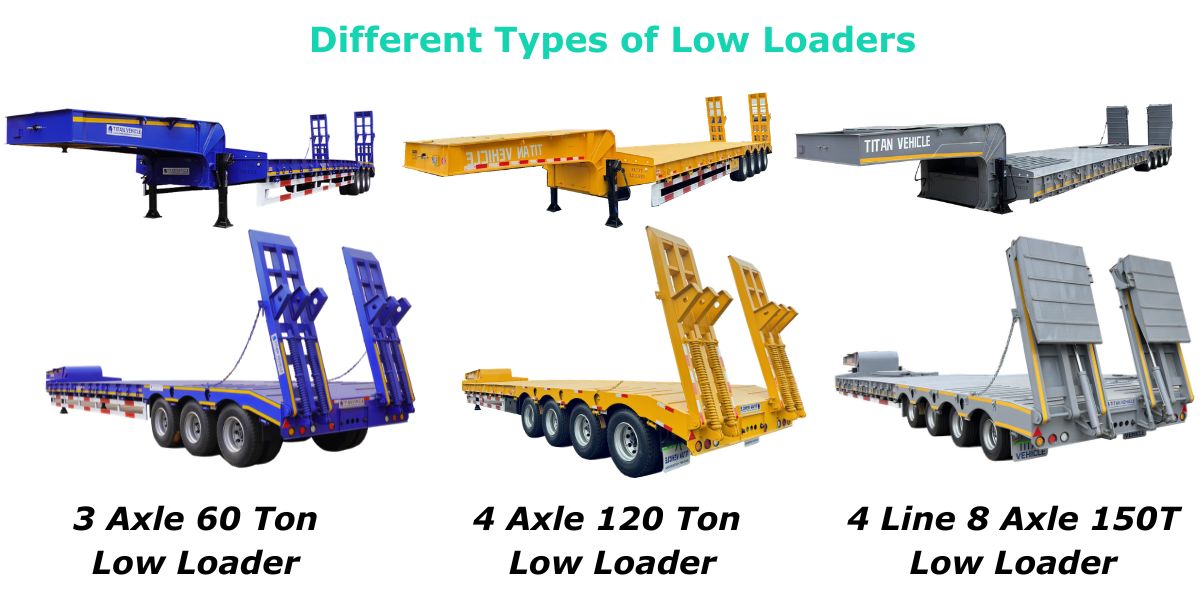

1. Normal type low loader:

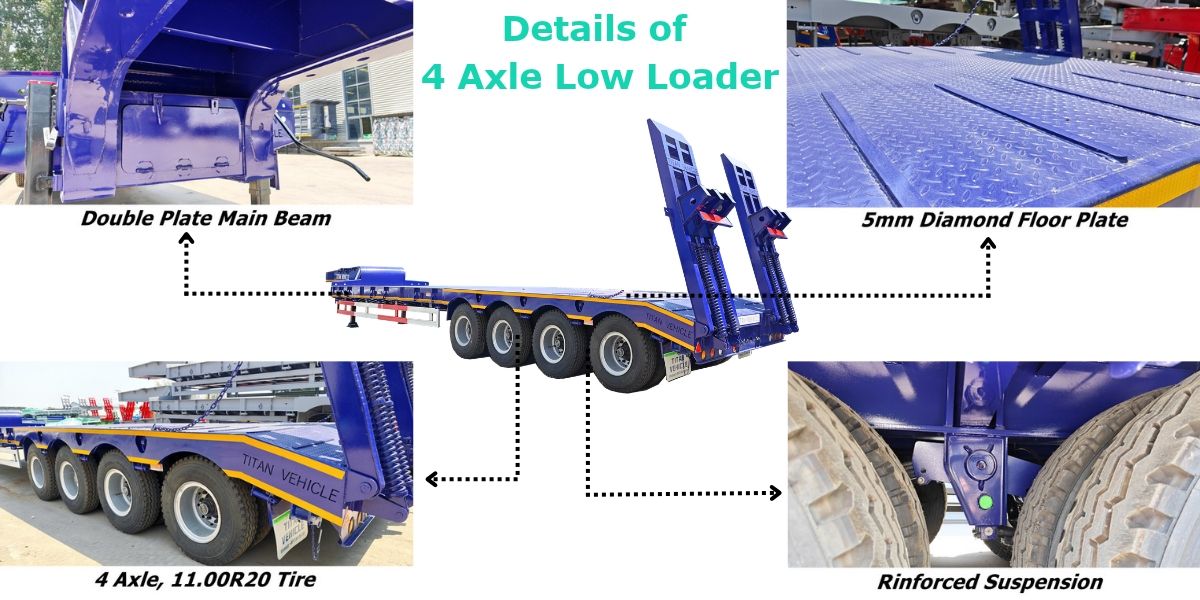

This normal type low loader for sale is the most popular type low loader with a loading capacity from 40-80 tons, the low loader for sale equipped with 2-4 axles, model for 13-20 ton axles. Usually equipped with the spring ladders for the machines such as the wheel loaders, excavators, or some different types of wheeled machines transportation. The high of the working platform is various from 1000mm to 1200mm.

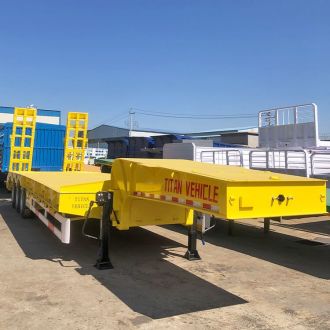

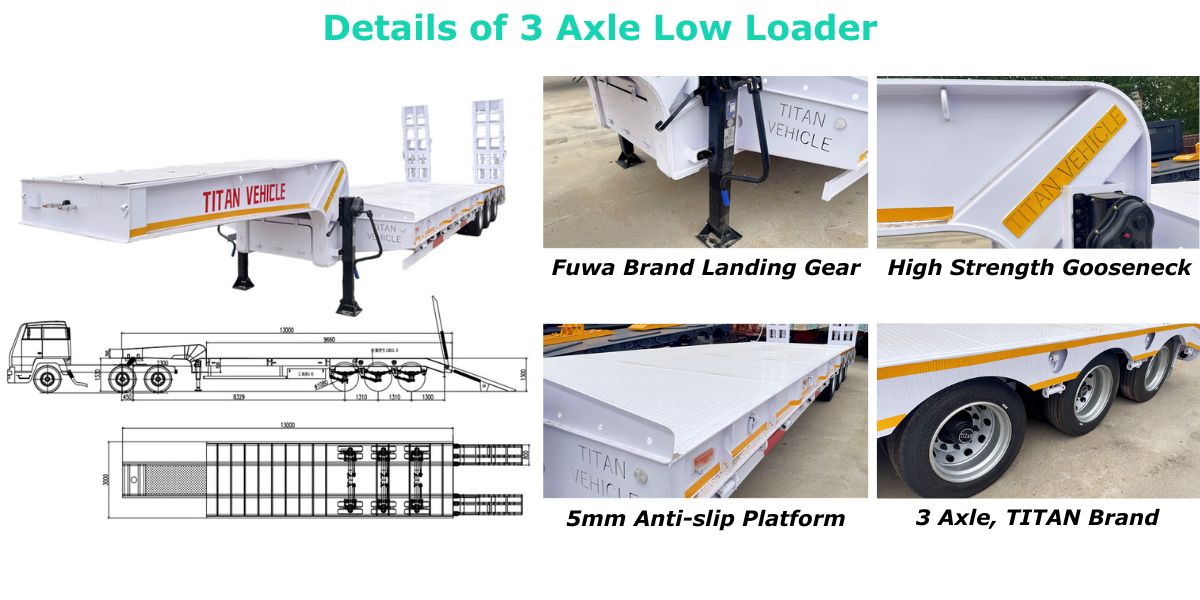

The 3 axle low loader for sale in Ghana is a common configuration for transporting construction machinery, offering an excellent balance of load bearing capacity, operational flexibility, and cost-effectiveness. Equipped with three axles, 3 axle low loader for sale in Ghana can be customized to include mechanical ramps, spring assisted ramps, or hydraulic folding ramps based on specific customer requirements. They are typically used to transport medium-to-large excavators, bulldozers, wheel loaders, motor graders, road rollers, and various types of mining or construction equipment.
Compared to 2 axle models, 3 axle low loader for sale in Ghana can distribute loads more effectively, while also providing greater design flexibility for the chassis structure, suspension system, and tire configuration. For construction firms that need to move equipment between multiple job sites, a 3 axle low loader for sale in Ghana often strikes an optimal balance between initial procurement costs, transport capacity, and daily operational efficiency.
In the Ghanaian market, 3 axle low loader for sale in Ghana can be designed for various load capacities, such as 50, 60, or 80 tons, depending on their intended use. However, these capacity ratings must be verified against the specific technical specifications for each model; they cannot be determined solely by the number of axles. For customers who need to transport excavators, loaders, and other standard construction machinery, the 3 axle low loader for sale in Ghana is generally the preferred baseline choice.
2. Heavy duty low loader:
Heavy duty low loader for sale is almost the same as the normal type low loader for sales, only comes with a higher loading capacity normally from 100 tons to 140 tons. This type of low loader is a cost-effective type, usually used for those countries which don't have the special requirements on the axles load and the off-road working environment.
The 100 tons to 140 tons semi low loader in Ghana is mainly used for the transportation of large mining machinery, super-large construction machinery and other heavy industrial equipment. This level usually requires more detailed load calculations and determines the frame structure, number of axles, axle group spacing and suspension form based on the cargo center of gravity and loading position. For equipment whose weight is concentrated in local areas, special attention needs to be paid to the local pressure bearing, main beam bending, cross beam connections, and the stress in the gooseneck area during design.
In actual projects, 4 axle or other multi axle solutions may become design options, but it cannot be judged that the vehicle can transport 100 tons to 140 tons of cargo based on "4 axle" alone. Axles, tires, suspension and frame must match as a complete system. If the road allows limited axle loads, it may be necessary to increase the number of axles or adopt a special axle group suitable for heavy duty transportation. At the same time, an increase in the number of axles will also bring changes in the number of tires, maintenance costs, vehicle length and turning space.
For 100 tons to 140 tons transportation projects, it is best for customers to provide complete equipment parameters and route information, including equipment weight, length, width, height, center of gravity location, loading fulcrum and weight limit conditions of the transportation road. In this way, the height of the low cargo platform, effective load bearing area, axle group layout and gooseneck form can be reasonably determined, so as to avoid purchasing only based on tonnage and causing the vehicle to fail to meet the actual task.
3. Dual lane axles low loader:
The main specification for the dual-lane low loade is its axles. The dual lane axle low loader for sale equipped with the short axles, each line has two short axles with 8 sets of tires and rims. The load capacity can reach 150-200 ton. This type of low loader is usually used for super heavy equipment transportation. The working platform length will be designed according to the machines that will be transported, tire covered, or exposed types.
The 150-200 ton dual-lane low loader for sale in Ghana is a high capacity vehicle designed for heavy duty transport, suitable for moving large-scale mining equipment, heavy construction machinery, industrial production equipment, and specialized loads for major infrastructure projects. Compared to standard 3 axle or 4 axle semi low loader, the 150-200 ton dual-lane low loader for sale in Ghana require more complex structural design, precise load distribution calculations, and carefully matched vehicle configurations. Common designs include multi-axle arrangements, such as 4 line 8 axle configurations, though other specialized axle-group setups may be employed depending on specific transport requirements.
The primary purpose of a multi axle design is to distribute heavy cargo loads across multiple axle groups, ensuring that each component remains within its rated capacity while complying with road infrastructure limitations. For the transport of ultra-heavy equipment, hydraulic suspension systems can help manage load distribution across different axle groups and, in some designs, allow for the adjustment of the platform height. Additionally, steerable axle groups improve the vehicle's maneuverability when navigating curves or narrow routes. The inclusion of hydraulic suspension, steerable axles, and specialized towing connections is determined by the requirements of the specific project.
Selecting a 150-200 ton dual-lane low loader for sale in Ghana based solely on a general product catalog is typically insufficient. Manufacturers must conduct a comprehensive assessment that accounts for the vehicle's tare weight, the actual weight and center of gravity of the cargo, the capacity of the prime mover (tractor unit), road load-bearing limits, bridge restrictions, and regulatory transport permit requirements. For high-value cargo, such as transformers, large industrial equipment, or mining machinery, a detailed route survey and a thorough evaluation of the loading plan are essential prior to transport to mitigate the risks of structural overloading and potential issues during transit.
A semi low loader in Ghana is a specialized type of semi trailer designed for transporting heavy construction machinery, large scale industrial equipment, and oversized or irregularly sized cargo. The low loader for sale in Ghana widely used across various sectors, including construction, roadworks, mining, agriculture, energy infrastructure, port logistics, industrial manufacturing, and general infrastructure development.
Compared to standard flatbed semi trailers, the primary feature of a low loader for sale in Ghana is its low cargo deck. Semi low loader in Ghana typically incorporates a low profile deck design, a reinforced chassis capable of supporting heavy loads, and an axle configuration optimized for heavy duty transport. This design reduces the overall height of the load during transit while providing the necessary load bearing capacity for heavy items.
Depending on factors such as the weight and dimensions of the cargo, loading and unloading methods, and road conditions, semi low loader in Ghana can be configured with two, three, four, or more axles. Semi low loader in Ghana can also be equipped with various structural features, such as fixed or detachable goosenecks, hydraulic or mechanical ramps, hydraulic suspension systems, and extendable cargo decks—to meet the specific transport requirements of different clients.

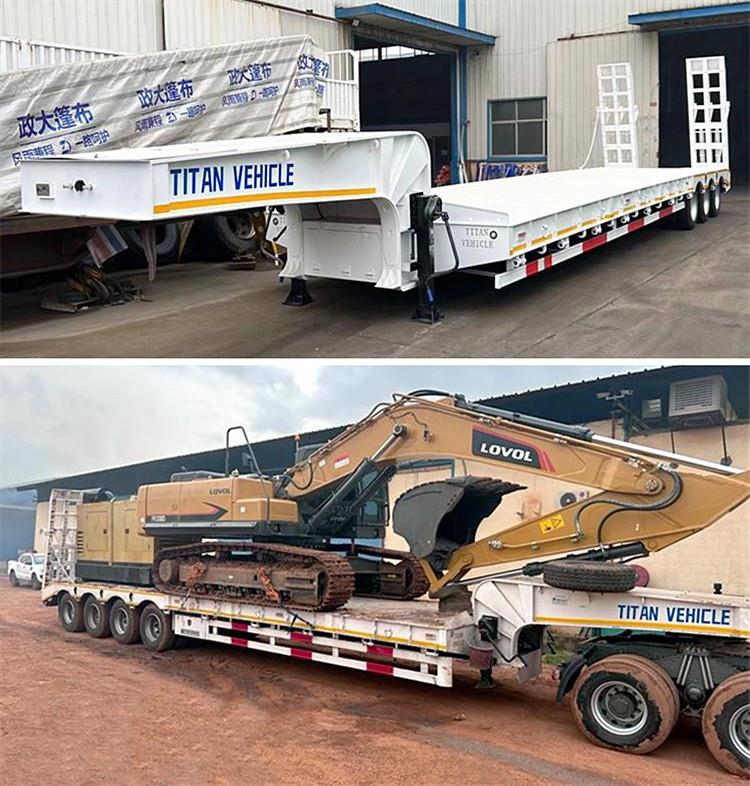

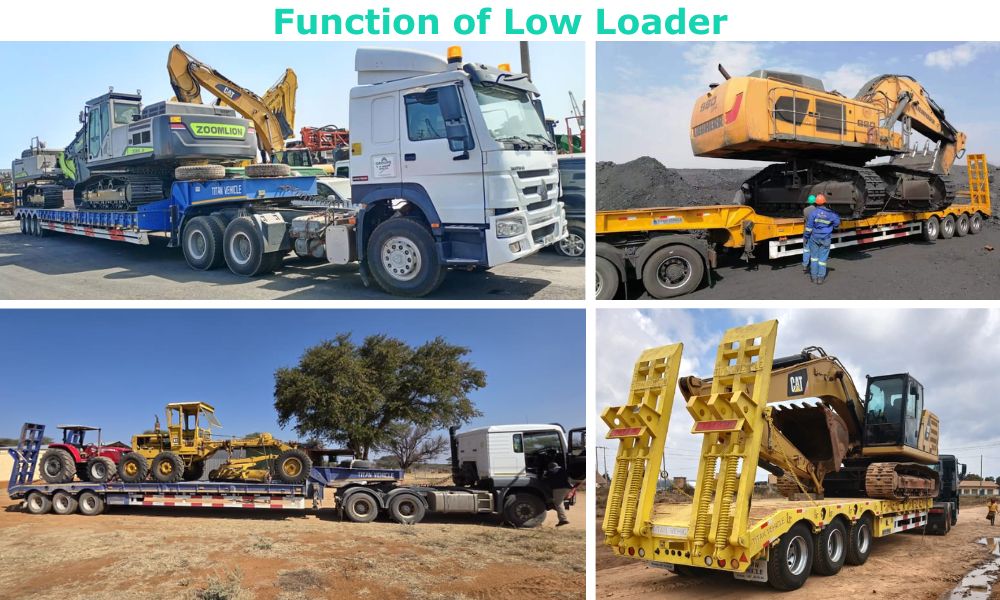

1. Transporting Construction Machinery such as Excavators and Bulldozers
Transporting construction machinery, including excavators, bulldozers, loaders, road rollers, and motor graders, is one of the most common applications for low loader for sale in Ghana. Such machinery frequently requires relocation between construction sites, roadworks, mining operations, and infrastructure projects. Consequently, using low loader for sale in Ghana enhances relocation efficiency and minimizes unnecessary wear and tear that would otherwise occur during long-distance travel.
The low deck design of semi low loader in Ghana is particularly advantageous for transporting large construction machinery. Excavators and bulldozers typically feature tall profiles, wide tracks, and heavy overall weights; a low deck helps reduce the total height of the transport combination and improves the slope angle for loading and unloading certain types of equipment. For tracked machinery that drives onto the deck under its own power, customers can opt for rear-mounted mechanical or hydraulic ramps. For large equipment requiring complex loading procedures, a detachable semi low loader in Ghana allows the front gooseneck to be removed, creating a front-end access point that facilitates easier loading and unloading. The specific trailer model should be selected based on the equipment's total weight, track width, chassis length, ground clearance, and center of gravity to ensure safe loading, securing, and transport.
2. Transporting Road Construction and Infrastructure Development Equipment
Road construction, bridge building, airport development, and large-scale infrastructure projects typically require a wide array of heavy machinery, including road rollers, motor graders, asphalt pavers, milling machines, bulldozers, excavators, and concrete construction equipment. Low loader for sale in Ghana is ideal for the centralized transport of such machinery, enabling construction firms to improve equipment deployment efficiency and avoid the wear and tear, or operational risks, associated with driving heavy equipment over long distances on public roads.
When selecting a semi low loader in Ghana, construction companies should prioritize ease of loading and unloading, as well as ensuring the deck dimensions are suitable for a diverse range of machinery. Given that equipment such as road rollers and asphalt pavers may vary in terms of wheelbase, track width, and approach angle, factors like deck width, effective length, and the incline of the loading ramps are critical to practical utility. If a company needs to transport multiple types of construction machinery, it should select a semi low loader trailer model tailored to its most frequent equipment combinations and establish secure, reliable tie down procedures for each piece of machinery.
3. Transporting Agricultural Machinery and Large Scale Farm Equipment
In modern agricultural production, large machinery, such as combine harvesters, tractors, self-propelled sprayers, and seed drills, often needs to be transported between different farms, operational sites, or equipment storage facilities. For machinery that is exceptionally large, heavy, or unsuitable for traveling long distances under its own power, a semi low loader in Ghana offers a convenient transport solution.
Given that some large agricultural machines feature wide bodies, high cabs, or oversized tires, transport planning must account for more than just load capacity; it must also consider the total width and height of the loaded vehicle, as well as the methods used to secure the cargo.
For agricultural machinery dealers and rental companies, selecting a semi low loader in Ghana capable of accommodating a diverse range of equipment helps maximize vehicle utilization and eliminates the need to maintain separate transport units for different types of machinery.
4. Transporting Mining Machinery and Heavy Duty Mining Equipment
Projects such as open-pit mines and quarries frequently require the use of large scale excavators, mining bulldozers, drilling equipment, loaders, and other heavy machinery. Semi low loader in Ghana provide a suitable platform tailored to the weight and dimensions of such equipment, facilitating the relocation and deployment of large machinery for mining operations.
Compared to standard construction machinery, mining equipment often features greater weight, larger track contact areas, or unique centers of gravity. Consequently, this places higher demands on the structural strength, axle configuration, and suspension systems of semi low loader in Ghana. For medium-sized mining machinery, 3 axle or 4 axle low loader for sale in Ghana engineered for specific load capacities, are suitable options. For large-scale mining excavators and ultra-heavy mining equipment, it may be necessary to employ multi axle heavy duty low loader for sale in Ghana, hydraulic suspension systems, or specialized modular transport systems.
The size of a low loader in Ghana can vary depending on the specific model and manufacturer.
However, in general, low loaders are typically longer and wider than standard flatbed trailers to accommodate oversized or overweight cargo. The length of a low loader for sale can range from 11.5m to 18.5m, while the width can range from 2.5m to 3.5m.
Additionally, the height of the low loader for sale can vary based on its design, with some models featuring a higher deck height to allow for greater ground clearance for off-road transport.

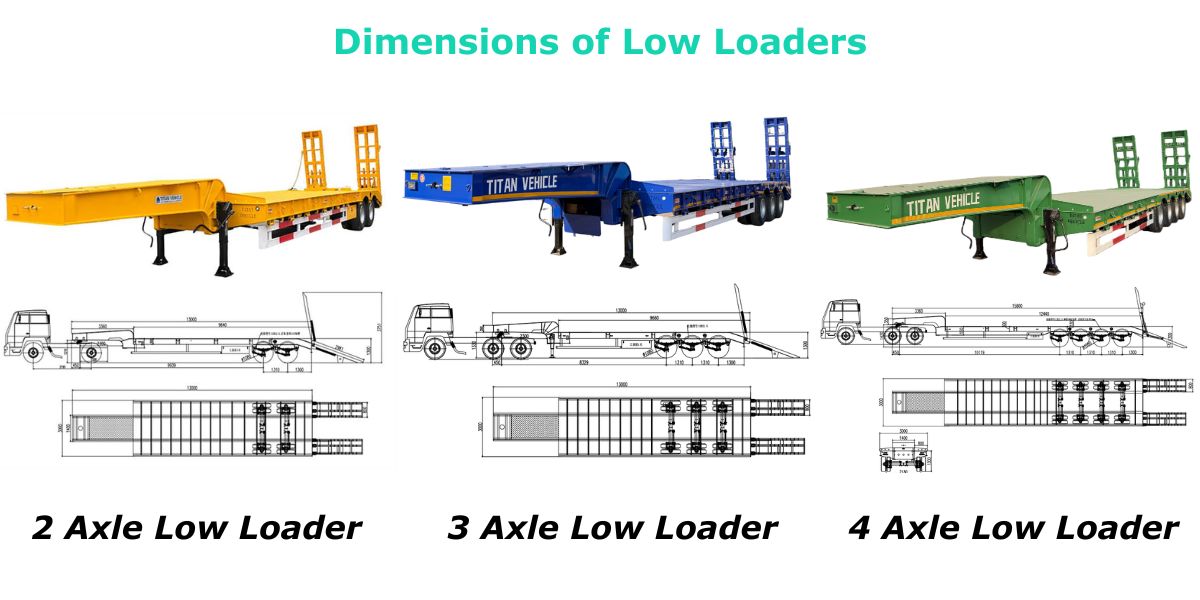

Low loader dimensions
As a professional manufacturer, TITAN VEHICLE has provided many low loaders for Ghana. TITAN low loaders have different capacities, we can customize the low loader for you according to your needs.

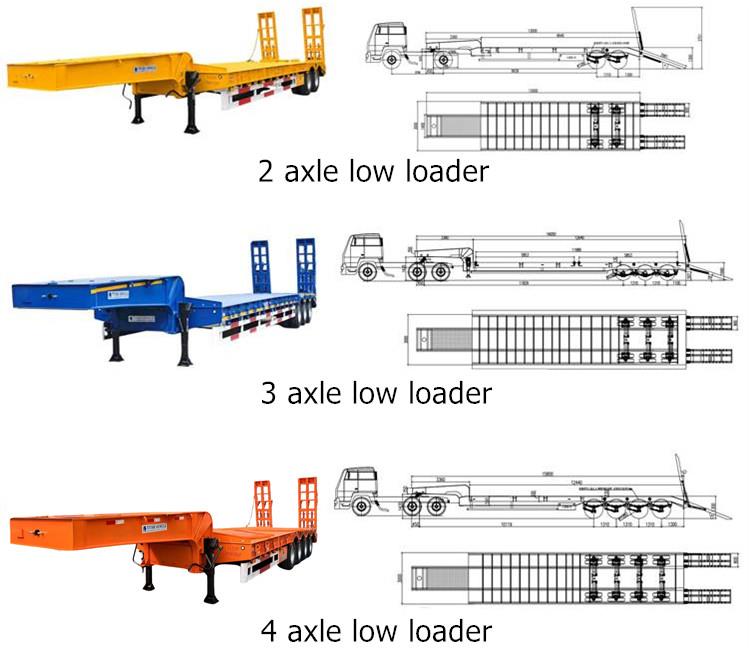

The following are the dimensions of several conventional models of TITAN low loaders:
2 axle low loader dimensions: 13000*3000*3750mm(platform height 1300mm)
3 axle low loader dimensions: 14000*3000*3400mm(platform height 950mm)
4 axle low loader dimensions: 15800*3000*3750mm(platform height 1300mm)
2 axle low loader capacity: 30-40 ton
Tri axle low loader capacity: 40-80 ton
4 axle low loader capacity: 80-120 ton
The following are the lengths of several conventional models of TITAN low loader in Ghana:
The 2 axle low loader in Ghana: 13000mm
The 3 axle low loader for sale: 14000mm
The 4 axle low loader for sale: 15800mm
The 4 line 8 axle low loader: 17500mm
Most popular low loader width: 3000m. Can be customized if you have special needs.
| Low Loader Type | Overall Dimensions (L × W × H) | Loading Capacity | Overall Length |
|---|---|---|---|
| 2 Axle Low Loader | 13000 × 3000 × 3750 mm | 30–40 Tons | 13000 mm |
| 3 Axle Low Loader | 14000 × 3000 × 3400 mm | 40–80 Tons | 14000 mm |
| 4 Axle Low Loader | 15800 × 3000 × 3750 mm | 80–120 Tons | 15800 mm |
The price of low loader for sale in Ghana is not determined by a single factor; rather, it is influenced by a combination of elements, including load capacity, number of axles, frame structure, steel specifications, hydraulic systems, axle and suspension configurations, tire setups, braking systems, customization requirements, and the specific terms of transport and trade. For customers in different countries and regions, even when purchasing the same type of low loader for sale in Ghana, the final model selected—and its corresponding price—can vary significantly due to differences in equipment weight and dimensions, local road regulations, operating environments, and budgetary constraints. Therefore, when purchasing a low loader for sale in Ghana, one should not rely solely on the quoted price; instead, a comprehensive evaluation is necessary, taking into account actual transport requirements, vehicle configuration, manufacturing quality, and long-term operating costs.
1. Load Capacity and Number of Axles
Load capacity is a primary factor in determining the price of a semi low loader in Ghana. Trailers with different load ratings typically differ in terms of frame structure, steel thickness, number of axles, tire configuration, and suspension systems. For instance, a 30–40 ton capacity semi low loader in Ghana—often used for transporting small-to-medium-sized excavators, loaders, forklifts, and other construction machinery—features a relatively simple structure and fewer load bearing components, resulting in a lower manufacturing cost compared to a heavy duty model from the same brand with similar specifications. Conversely, customers needing to transport large excavators, mining equipment, bulldozers, or other heavy duty machinery may require a trailer with a capacity of 60, 80, 100, or even 120+ tons. Such models necessitate stronger main beams, an optimized load-distribution design, and higher capacity axles and tires, all of which lead to higher overall manufacturing costs.
2. Frame Structure and Steel Specifications
The frame serves as the primary load bearing structure of a semi low loader in Ghana. Its design, the quality of the steel used, the thickness of the steel plates, and the manufacturing processes employed all directly influence the final price. Semi low loader in Ghana typically subjected to concentrated loads from construction machinery. Consequently, the main beams, cross-members, the connection area at the gooseneck, and the suspension mounting points must be carefully engineered based on the anticipated actual loads. For standard construction machinery transport, a conventional structural design is generally sufficient. However, for clients who frequently transport large excavators, mining equipment, or other heavy duty machinery, it may be necessary to incorporate reinforced main beams, an optimized cross member layout, and localized structural reinforcements to enhance the frame’s load bearing capacity and fatigue resistance. These design choices influence steel consumption, labor hours, welding complexity, and overall manufacturing costs. Therefore, even if two semi low loader in Ghana appear identical in terms of exterior, length, and number of axles, their prices can differ significantly based on their specific frame structure and design load capacity.
The type and thickness of the steel used are also critical factors affecting the price of a semi low loader in Ghana. Different grades of steel offer varying levels of strength, toughness, and workability; utilizing high strength steel that meets specific design requirements helps optimize the frame's weight while maintaining the necessary load-bearing capacity.
3. Gooseneck Configuration and Loading/Unloading Methods
The design of the gooseneck is another major factor that determines the price of a low loader for sale in Ghana. Depending on transport requirements, these trailers can be configured with a fixed gooseneck, a mechanically detachable gooseneck, or a hydraulically detachable gooseneck. A fixed gooseneck features a relatively simple structure with fewer components, generally resulting in lower manufacturing costs and easier maintenance; it is well-suited for operations with consistent transport routines where there are no specific requirements regarding loading/unloading height. A mechanically detachable gooseneck, by contrast, allows the connection point to be disconnected, creating an opening at the front of the low loader for sale in Ghana. This enables certain types of construction machinery to drive directly onto the deck from the front, making it an ideal solution for scenarios that demand greater convenience during loading and unloading. Because this design requires additional connection mechanisms, locking devices, and specialized load bearing structural elements, it is typically more expensive than a comparable model equipped with a fixed gooseneck.
4. Axles, Suspension Systems, and Tire Configurations
Axles, suspension systems, and tires are critical components that influence both the manufacturing cost and the long-term operating costs of a low loader for sale in Ghana. Axles vary by brand, load capacity, and technical specifications, differing in terms of manufacturing processes, braking configurations, hub structures, bearing designs, and service life, which leads to variations in procurement costs.
Suspension systems generally fall into three categories: mechanical, air, and hydraulic. Mechanical suspension is relatively simple in design and easy to maintain, making it well-suited for standard construction machinery transport and cost-sensitive markets. Air suspension offers different vibration-damping characteristics compared to traditional leaf-spring suspension; however, it requires additional components such as air springs and control valves. Its suitability should be assessed based on load requirements and local regulatory standards.
5. Braking Systems and Safety Features
Since low loader for sale in Ghana used to transport heavy construction machinery, the configuration of the braking system significantly impacts both vehicle safety and cost. Common components include pneumatic braking systems, brake chambers, air lines, and air reservoirs. Depending on market requirements, these may also include features such as an Anti-lock Braking System (ABS). Braking components from different brands and with varying specifications may differ in terms of procurement cost, reliability, and ease of maintenance.
In addition to the basic braking system, some customers may request supplementary safety and electrical features—such as lighting systems that comply with local regulations, reflective markings, side and rear underride guards, or other safety-related accessories.
6. Vehicle Dimensions and Customization Requirements
Parameters such as the length, width, deck height, gooseneck dimensions, and ramp configuration of a low loader for sale in Ghana also influence the final price. Standard models typically utilize well-established design schemes and production processes, making their manufacturing costs relatively easy to control. However, if a customer requires a longer loading deck, a wider transport area, a lower deck height, or a specialized gooseneck design, it may be necessary to redesign the chassis frame, adjust the layout of the cross-members, incorporate structural reinforcements, or implement different suspension and tire configurations. Such modifications not only affect the quantity of materials required but also increase the workload associated with design, machining, welding, and assembly.
There is no single, universal load capacity for low loader for sale in Ghana; the capacity varies based on factors such as the number of axles, frame structure, steel specifications, suspension system, tire configuration, gooseneck design, and applicable road regulations. Standard models can accommodate the transport of construction machinery weighing between 30 and 80 tons, while multi axle low loader for sale in Ghana—designed for large-scale mining equipment, ultra-heavy machinery, or specialized engineering projects—can reach capacities of 100, 120, 150 tons, or even more.
What are the load capacities for different types of low loader for sale in Ghana?
The load capacity of a low loader for sale in Ghana is generally categorized based on its axle configuration, frame design, and intended transport application. For conventional construction machinery, a two axle low loader for sale in Ghana typically has a design capacity of approximately 30–40 tons; three axle models are generally designed for 40–80 tons, while four axle models can handle heavy duty transport requirements in the 80–120 ton range. While these ranges are useful for initial selection and understanding common market offerings, they do not constitute a uniform industry standard; the actual load capacity of a specific vehicle cannot be determined solely by the number of axles.
For heavier transport tasks, clients may opt for low loader for sale in Ghana with five, six, or more axles, or heavy duty transport vehicles equipped with multi axle hydraulic suspension systems. The semi low loader in Ghana is primarily used for hauling large-scale mining equipment, massive construction machinery, transformers, industrial equipment, or other specialized, high-density cargo. For models with capacities of 100–150 tons or higher, manufacturers must carefully evaluate factors such as axle-group layout, load distribution, frame structural integrity, steering performance, braking capabilities, and loading/unloading procedures—simply adding more axles is not sufficient to increase load capacity. In the case of ultra-heavy transport equipment, custom design is often required, taking into account the cargo’s weight, dimensions, center of gravity, and the specific transport route, to ensure safety during loading, cornering, braking, and traversing uneven terrain.
Frame Strength and Steel Specifications Influence Actual Load-Carrying Capacity
The material, thickness, cross-sectional dimensions, and welding quality of the steel all affect the load bearing performance of the frame. For standard duty trailers, a well-designed main beam structure—utilizing steel that meets specific design requirements—is generally sufficient for the daily transport of construction machinery. However, for semi low loader in Ghana with load capacities of 80, 100, or 120 tons (or even higher), it may be necessary to employ more robust main beam structures, reinforced cross members, and targeted structural reinforcements based on precise engineering calculations. While increasing the amount of steel used can enhance load capacity in certain areas, it also adds to the vehicle's curb weight; therefore, manufacturers must strike a balance between structural strength, vehicle weight, load distribution, and cost.
1. What is a semi low loader?
A semi low loader in Ghana is a specialized type of semi trailer designed for transporting heavy construction machinery—such as excavators, bulldozers, loaders, and road rollers—featuring a low loading platform and high load bearing capacity.
2. What is the load capacity of a low loader?
The load capacity of a semi low loader for sale in Ghana depends on the number of axles, the frame structure, and the specific configuration. Common models include two axle trailers (30–40 ton capacity), three axle trailers (40–80 ton capacity), and four axle trailers (80–120 ton capacity).
3. Can semi low loader be customized?
Yes. TITAN VEHICLE offers customized solutions based on a client’s specific requirements, including load capacity, equipment dimensions, axle configuration, platform height, ramp design, and the regulatory standards of the destination country.
4. What types of ramps are available for low loader?
Common options include mechanical ramps and hydraulic ramps. Mechanical ramps feature a simple design and lower cost, while hydraulic ramps offer greater ease of operation—making them ideal for scenarios that require frequent loading and unloading of heavy construction machinery.
5. How do I choose the right low loader?
The choice of model should be based on the weight and dimensions of the equipment being transported, the loading/unloading method, axle load limits, and road conditions. It is recommended to provide the manufacturer with the specific model and technical parameters of your equipment to determine the appropriate load capacity and vehicle configuration.
6. How should a low loader be maintained?
Regular inspections should be performed on the frame, welded joints, axles, tires, braking system, suspension system, and ramps. For models equipped with hydraulic systems, it is also necessary to check the hydraulic cylinders, hoses, and hydraulic fluid to ensure the vehicle operates safely.
