20000 Liters Diesel Tanker Truck
20000 Liters Diesel Tanker Truck

20000 Liters Diesel Tanker Truck

52000 USD

Fuel transport systems, depots, chemical transport companies, and gas transport companies need safe and reliable Howo 8x4 20000 Liters Diesel Tanker Truck to hold that material.

SKU: 20000 Liters Diesel Tanker Truck
MPN: HOWO9404004
Brand: Sinotruk

Product Description:

Howo 8x4 20000 Liters Diesel Tanker Truck has a variety of fueling or oil transport functions depending on the application and environment. They have the functions of oil absorption, pump oil, and various oil dispensing and distribution.

The special part of the oil truck is composed of a tank body, a power take-off, a drive shaft, a gear oil pump, a pipe network system and the like. The pipe network system consists of an oil pump, a three-way four-position ball valve, a two-way ball valve, a strainer, and a pipe.

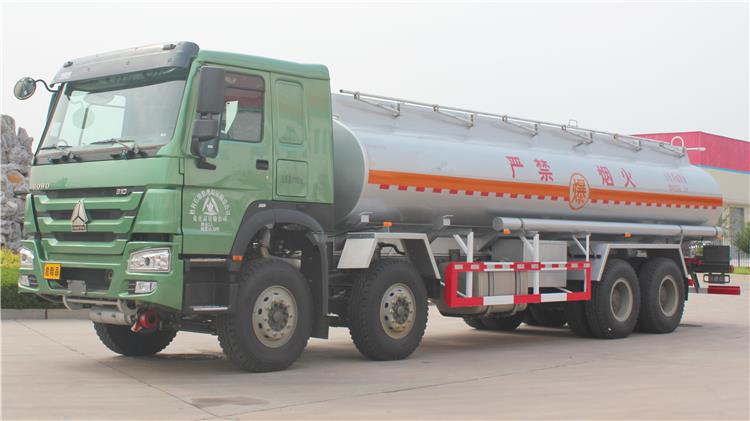

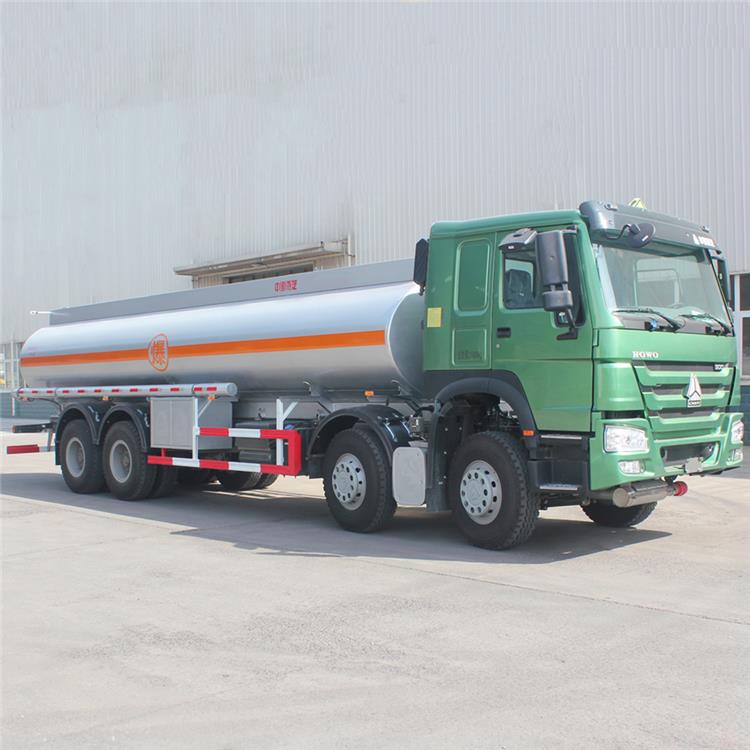

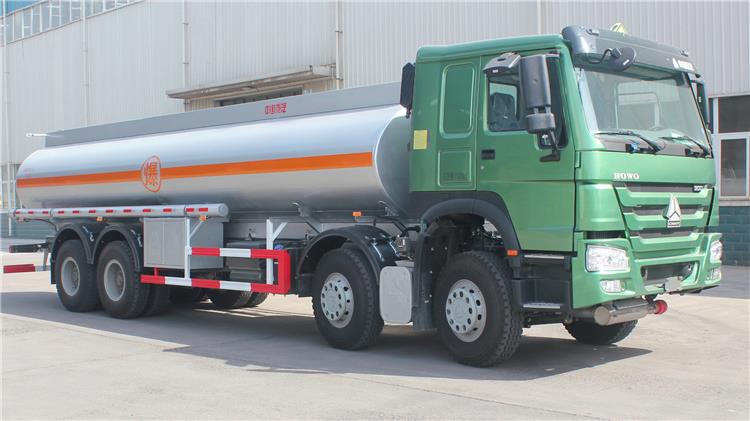

Howo 8x4 20000 Liters Diesel Tanker Truck for Sale in Ghana Accra

Howo 8x4 20000 Liters Diesel Tanker Truck for Sale in Ghana Accra

Howo 8x4 20000 Liters Diesel Tanker Truck for Sale in Ghana Accra

Howo 8x4 20000 Liters Diesel Tanker Truck for Sale in Ghana Accra





Specification:

Chassis model: ZZ1257N4641W

Driving type: LHD (RHD is optional)

Cabin: HW76, with one sleeper and two seats, double arm windscreen wiper system with three speeds, damped adjustable driver's seat, with heating and ventilating system, exterior sun visor, safety belts, adjustable steering wheel, air horn, air conditioner, with transverse stabilizer, with four-point support floating suspension+shock absorber.

Engine:

Make: SINOTRUK Diesel 4-stroke direct injection diesel engine

Engine model: WD615.69, Euro 2, 336 HP 6-cylinder in-line with water cooling, turbo-charging and intercooling

Displacement: 9.726 L

Transmission: HW19710, 10F & 2R with PTO

Ratio:14.28, 10.62, 7.87, 5.88, 4.38, 3.27, 2.43, 1.80, 1.34, 1.00, 13.91(R1), 3.18(R2)

Steering: ZF power steering, model ZF8118, hydraulic steering with power assistance

Front axle: HF9,1×9000 KGS, 7 Ton

Steering: with doubleT-cross section beam

Rera-axle: HC16, 2×16000 KGS, Pressed axle housing, central single reduction with hub reduction, with differential locks between wheels and axles, 13 Ton

Ratio: 4.42

Propeller shaft: Double universal joint propeller shaft with gear-shaped coupling flange

Chassis:

Frame: U-profile parallel ladder frame with a section of 300x80x8mm, reinforced subframe all cold riveted cross members

Front suspension:10 semi-elliptic leaf spring, hydraulic telescopic double-action shock absorbers and stabilizer

Rear suspension: 12 leaf semi-elliptic springs, bogie spring and stabilizer

Brake:

Service brake: dual circuit compressed air brake

Parking brake (emergency brake): spring energy, compressed air operating on the front shaft and rear wheels

Auxiliary brake: engine exhaust brake

Electrics:

Operating voltage: 24 V, negative grounded

Starter: 24 V, 5.4 Kw

Alternator: 3-phase, 28 V, 1500 W

Batteries: 2 x 12 V, 165 Ah

Cigar-lighter, horn, headlamps, fog lights, brake lights, indicators and reverse light

Tyres: 315/80R22.5, tubeless tyres with one spare tyre

Fuel tank body: Capacity 20000l

Overall Dimension: 10350×2496×3350 mm

Wheelbase(mm): 4600 + 1350mm

Tank Material: Carbon steel (optional with stainless steel, aluminum alloy)

Equipment:

1. Equipped with 1 oil pump with 1 inlet valve and 1 outlet valve.

2. Tank divided into 6 compartments, each discharge valve for each compartment.

3. Each European standard manhole cover and each air emergency valve for each compartment.

4. Equipped with the folding barrier on top of the tank.

5. Equipped with a fire extinguisher, front ladder, grounding wire, plastic fender.





Advantage:

1. Through the collision test, driving safety guarantee: the steel frame structure, the four-level safety protection system of frame safety and protection safety, after passing the high-standard collision test and being able to leave the test normally, it can withstand the two-ton swing arm impact test After the brand was opened from the laboratory.

2. Chassis parts adopt the reliable performance of international accessory products.

3. Car interior: humanized interior layout, high-end atmosphere shows taste.

4. The whole vehicle adopts CAN bus control technology: to improve the reliability and flexibility of the system.

5. A safer cab, stronger power, stronger carrying capacity, and better cost performance than models of the same level.



About SINOTRUK:

TITAN is authorised distributor of SINOTRUK, We produce New SINOTRUK Howo Trucks according to your order.



SINOTRUK is China's first heavy duty truck manufacturer, initially founded in 1956 and the cradle of China's heavy duty truck industry. SINOTRUK once manufactured China's first heavy duty truck, and it is China's first company to comprehensively introduce foreign heavy duty truck manufacturing technology of complete vehicle.

Today, SINOTRUK has developed into China's largest heavy duty truck manufacturing base and made significant contributions to the development of China's heavy duty truck industry and national economic growth.



SINOTRUK has been adhering to implementing independent innovations, carrying out its leading strategy in technologies and building its core competitiveness with intellectual property rights. It has the most patents in China's automotive industry.

SINOTRUK’s main truck models include HOWO, HOWO A7, HOHAN, main truck types include truck tractor, tipper truck, cargo truck, truck chassis, fuel tanker truck, water tank truck, and other special trucks.
