The 120t detachable gooseneck trailer relates to a hinged frame assembly ideally used for connecting a trailer of the low-bed type to a tractor. This detach trailer for sale has been widely accepted in the transportation of heavy equipment such as power shovels, cranes and tractors. This gooseneck trailer is usually attached to the tractor using a gooseneck that is normally detached from the front end of the trailer.
China 120 Ton Detachable Gooseneck Trailers for Sale in Ghana Tamale
China 120 Ton Detachable Gooseneck Trailers for Sale in Ghana Tamale
China 120 Ton Detachable Gooseneck Trailers for Sale in Ghana Tamale

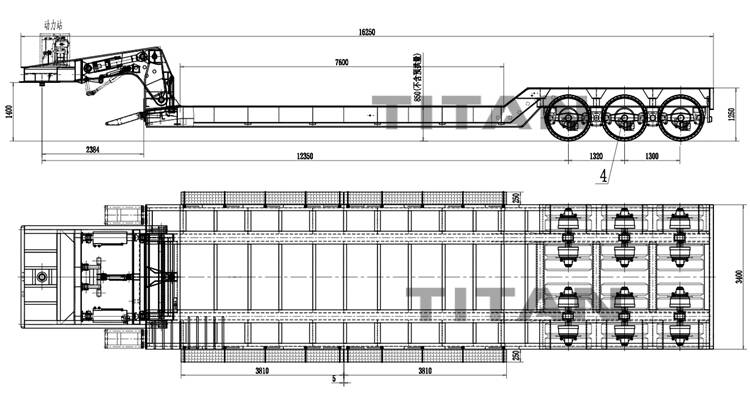

Dimension: 17000mm x 3000mm x 2500mm
Loading capacity(T): 50-150T
Axle: 3 line 6 axle
Tire: 24 units, 8.25R20/10.00R20/11.00R20/12R22.5
Suspension: Mechanical suspension or air suspension
Spring leaf: 120(W)mmx16(Thickness)mmx10 layers
Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)
Tare weight: About 9.5-19T
Main beam: Height: 500mm; Width: 230mm; Side beam: 250 I-beam 10/8/10; Material: HG60 high-strength steel.
Bottom Platform: 5mm thick, checkered plate
Hydraulic cylinder: 12KW diesel engine with hydraulic station
Ramp: spring or hydraulic type
ABS: Optional
Valve: WABCO valve
Light: LED light (specially intended for oversea markets)
Voltage: 24V
Tool box: 1 set
Painting: Polyurethane paint, with long service lift, and avoid the vehicle get rust

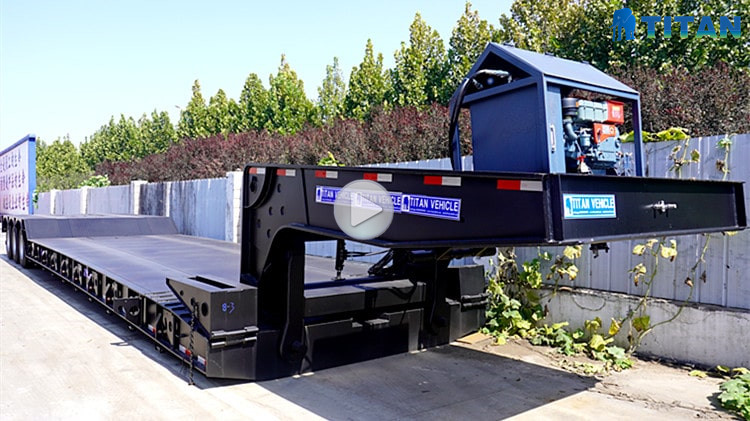

Through the video, you can know more details of 120T Detachable Gooseneck Trailer , etc.
Welcome to leave your inquiry! We will provide more details, price, catalog, drawing, videos for you!
