40000L Tri Axles Fuel Trailer
40000L Tri Axles Fuel Trailer

40000L Tri Axles Fuel Trailer

14500 USD

Different Parameters, Different Price. Price Reference Only.


TITAN 40000l tri axles fuel trailer can transport 40000 liters fuel, oil, diesel, gasoline and other liquids. TITAN 40000 litres fuel tanker semi trailer adopt famous brand axle.

SKU: 40000L Tri Axles Fuel Trailer
MPN: TITAN9504014
Brand: TITAN

40000L Tri Axles Fuel Trailer Product Description:

40000L tri axles fuel trailer, also known as fuel tank trailers, oil tanker trailers or monoblock trailers, are specialized vehicles that transport liquid fuels. Fuel tanker trailers as they are commonly called are vehicles with large tanks for transporting liquids. 40000L tri axles fuel trailer are mainly used for transporting liquid and oil.

The tank body is generally made of carbon steel sheet, and it can also be made of aluminum alloy fuel semi trailer, stainless steel tanker for sale, polyethylene and other materials.

They are designed for specific safe shipping of various liquids. Fuel Tanker Trailers for sale can be equipped with a pumping system for loading and off-loading liquids.

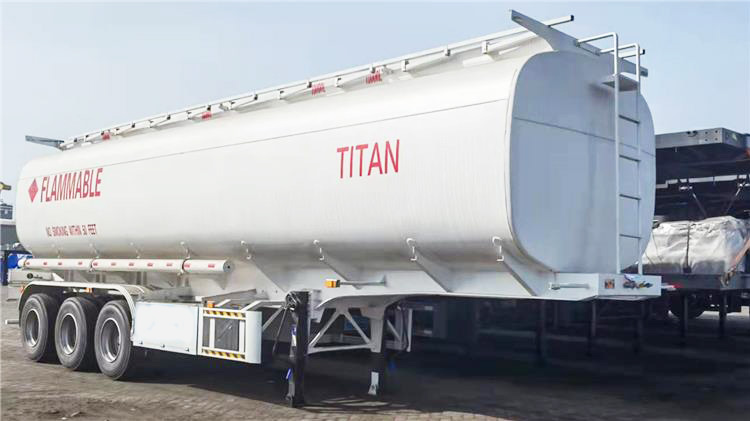

40000L tri axles fuel trailer

Used 40000L Tri Axles Fuel Trailers for Sale Near Me in Ghana Adda

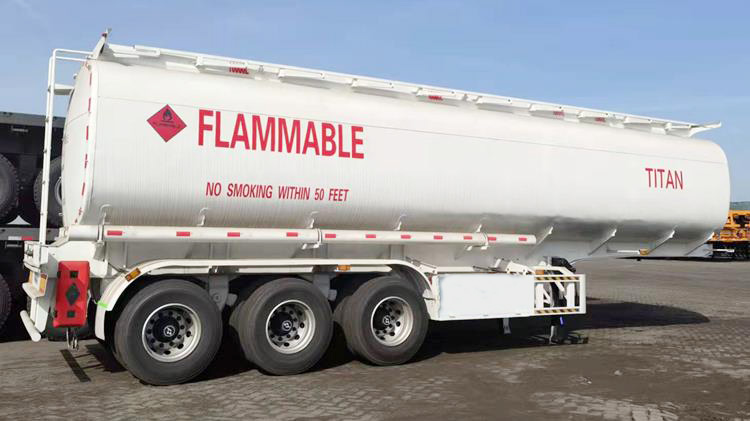

40000L tri axles fuel trailer

Used 40000L Tri Axles Fuel Trailers for Sale Near Me in Ghana Adda

40000L tri axles fuel trailer

Used 40000L Tri Axles Fuel Trailers for Sale Near Me in Ghana Adda


40000L Tri Axles Fuel Trailer Specification:

Shape: Round

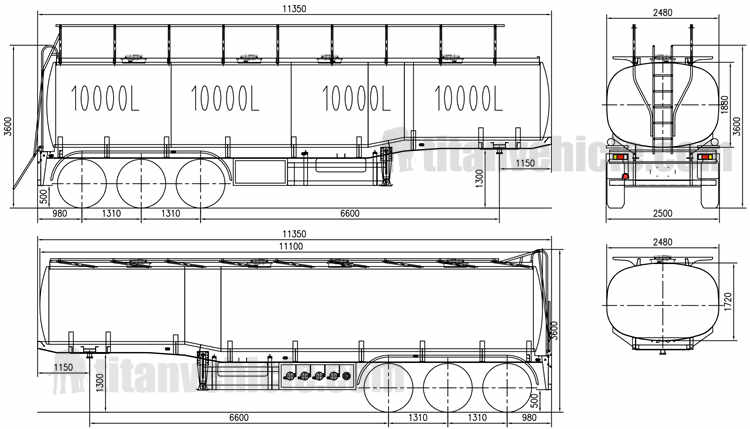

Dimension: 11350mm * 2500mm *3700mm (the exact size depends on the final design.)

Tare Weight (semi trailer): About 8000-12800kg

Total volume(m³):40000 Litres

Tank Body Material: 5mm or 6mm/Q235 carbon steel

End plate: 5mm or 6mm/Q235 carbon steel

Manhole Cover: Carton steel

Bottom Valve: Aluminum  API Pneumatic Bottom Valve

Compressor: BOHAI 10m³/12m³ or other brands

Discharging Valve: Diameter is 3 or 4 inch

Compartments: Optional

Discharging Pipe: 4 inch rubber hose,2pcs,6m/each

Cat Walk: With (common model or special design)

Main beams: Welded design or special design I beam, connected by bolts and nuts Q345 carbon steel material

Axle: 3 axles,13T,BPW

Landing Gear: JOST(D200T) or China brand 28T

Kingpin: JOST 2.0 or 3.5 inch bolt-in king pin

Suspension: Mechanical suspension

Leaf Spring: 90(w)mmx13(thickness)x10layers or 10mm x12mmx12 layers

Pneumatic Braking System: WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber(TKL brand); 45L air tank

Rim: 9.00-22.5/8.00-20/8.5-20 Chinese brand

Tire: 12.00R22.5/315.80R22.5/11.00R20/12.00R20 brand can be optional

ABS: Optional

Painting: Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layer of top coats.

Accessories: One standard tool box

Shipping Terms: By bulk cargo, RORO or 40HQ containers


40000L Tri Axles Fuel Trailer Advantage:

1. With safety devices: the manhole is an explosion-proof large cover. The bottom outlet of the tank is equipped with an emergency shut-off valve.

2. The tank body is automatically welded by an advanced large-scale special welding machine.

3. The TITAN tanker body is longitudinally welded. Ensure the safety of the tanker and increase the service life.

4. Water filled test equipment Water tank: To ensure the high sealed of tank body and avoid the leaks oil.

6. The waved board reduces the impact of the liquid on the tanker.

7. Advanced paint system and polyurethane paint. Appearance is beautiful, use time is above 5 years.

8. We adopt famous brand parts for our tank trailer, it saves costs & ensures long-time service.


Through this video, you can learn about different types of fuel tanker trailers, as well as the process, testing, packaging and customer feedback, etc.

fuel tanker trailer


Welcome to leave your inquiry! We will provide more details, price, catalog, drawing, videos for you!
