The 4 axle flatbed container trailer is perfectly compatible with standard ocean shipping containers (20ft / 40ft / 45ft) and can also be flexibly switched to ordinary flatbed trailers, easily carrying steel, building materials and large equipment, greatly reducing the return empty load rate.
The 4 axle flatbed container trailer is a heavy-duty semi-trailer specifically designed for high-load, multi-functional transport. By adding an extra axle, the 4 axle flatbed container trailer significantly improves the vehicle's total volume limit (GVW) and axle load distribution capacity, making it a mainstay model in port logistics, long-haul transport, and bulk cargo transport.

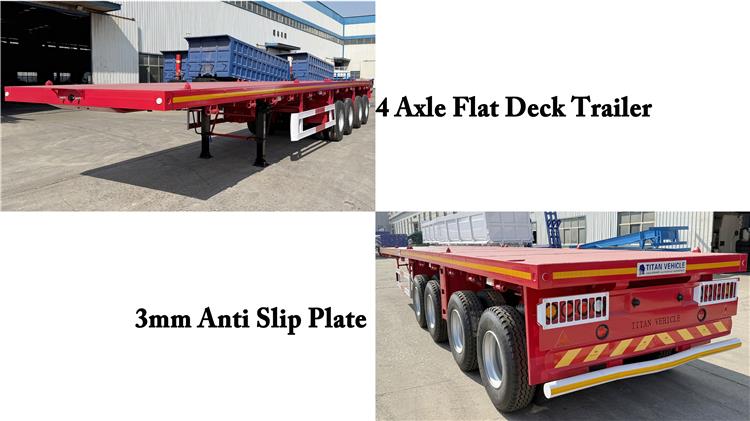

4 Axle Flatbed Container Trailer for Sale In Ghana
4 Axle Flatbed Container Trailer for Sale In Ghana
4 Axle Flatbed Container Trailer for Sale In Ghana

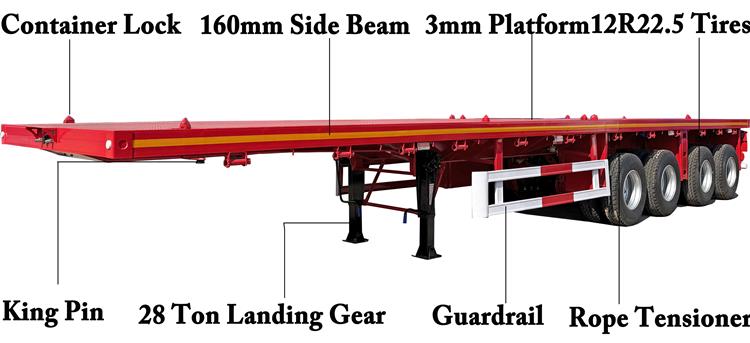

Dimension(mm): 13000x2500x1460mm
Loading capacity(ton): ≤80T
Axles: 4axles, TITAN Brand
Tire: 16 units, 12R22.5
Suspension: Mechanical suspension
Landing gear: JOST
Brake system: WABCO

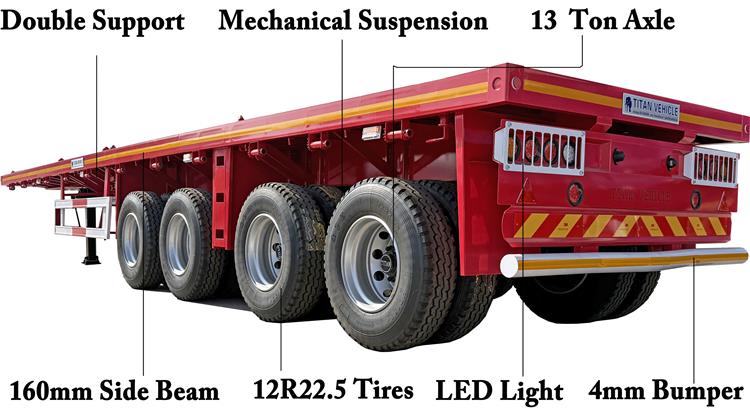

The 4 axle flatbed container trailer is typically equipped with four sets of 13T or 16T high-strength axles. The main beams are made of Q345B or T700 high-strength steel using automatic submerged arc welding, and the upper and lower flanges and web plates are thickened, providing extremely strong resistance to bending and torsion.
The 4 axle flatbed container trailer can flexibly secure one 40-foot or 45-foot standard container, two 20-foot containers, and one 20-foot heavy-duty container (placed in the middle of the frame). It features a plank and fastening design. The 4 axle flatbed container trailer is laid with 3mm–4mm anti-slip patterned steel plates (or high-strength wooden flooring), and the outer frame side beams are equipped with dense rope hooks, concealed pull rings, and stake holes for easy securing of non-container cargo.
The 4 axle flatbed container trailer typically has a rated load capacity of 60–80 tons (depending on local regulations and axle load standards), easily handling overweight containers and high-density bulky cargo. The 4 axle flatbed container trailer can be used as a dedicated container transport vehicle or a regular flatbed trailer, not limited by container size, greatly reducing empty return trips.
The 4 axle flatbed container trailer is equipped with high-quality suspension (mechanical or air suspension) and an axle lifting option, balancing road condition adaptability and long-distance fuel consumption control. 4.
Applications of Axle Flatbed Container Trailer: Port and Terminal Container Transfer: Used for high-speed trunk transport of 20ft/40ft/45ft containers between seaports, railway yards and inland logistics hubs, especially for heavy containers or parallel transport of double containers.
