Table of contents

Chapter 1: What is the meaning of low bed truck?

   1.1 What is the load capacity of low bed trailer?

   1.2 What is the standard size of low bed trailer?

Chapter 2: Components of the low bed trailer

Chapter 3: How to keep cargo stable on low bed trailer?

Chapter 1: What is the meaning of low bed truck?

A low bed truck, also known as a low bed trailer, refers to a type of heavy-duty truck trailer that is specifically designed for transporting oversized and heavy cargo. The term "low bed" refers to the lower height of the trailer's bed or deck, which allows for easier loading and transportation of tall or heavy items.

The key feature of a low bed truck in Ghana is its low-profile design. The bed or platform of the trailer is positioned closer to the ground compared to standard semi-trailers, allowing for increased clearance when transporting tall cargo. This design facilitates the transport of items such as construction equipment, industrial machinery, large vehicles, and other oversized loads.

Low bed trucks are commonly used in industries such as construction, mining, oil and gas, and transportation, where the need for moving heavy and irregularly shaped loads is frequent. They are equipped with heavy-duty axles and suspension systems to handle the weight of the cargo and provide stability during transport.

Overall, the purpose of a low bed truck is to facilitate the safe and efficient transport of heavy and oversized cargo by providing a specialized vehicle with a lower deck height and enhanced load capacity.

1.1 What is the load capacity of low bed trailer?

The load capacity of a low bed trailer can vary depending on several factors, including its design, construction, axle configuration, and any regional regulations that may apply.

That being said, low bed trailers are generally designed to transport heavy and oversized cargo, so they typically have higher load capacities compared to standard trailers. The load capacity of a low bed trailer is mainly determined by two factors:

Axle Configuration: Low bed trailer for sale in Ghana can have different axle configurations, such as 2-axle, 3-axle, or multi-axle setups. More axles generally increase the load-bearing capacity of the trailer. For example, a 2-axle low bed trailer may have a lower load capacity compared to a 4-axle low bed trailer.

Gross Vehicle Weight Rating (GVWR): The GVWR is the maximum allowable weight of the fully loaded trailer, including the weight of the trailer itself and the cargo. Low bed trailers with higher GVWR ratings are capable of carrying heavier loads.

We will be able to provide you with the most accurate and up-to-date information based on the specific model and configuration you are interested in.

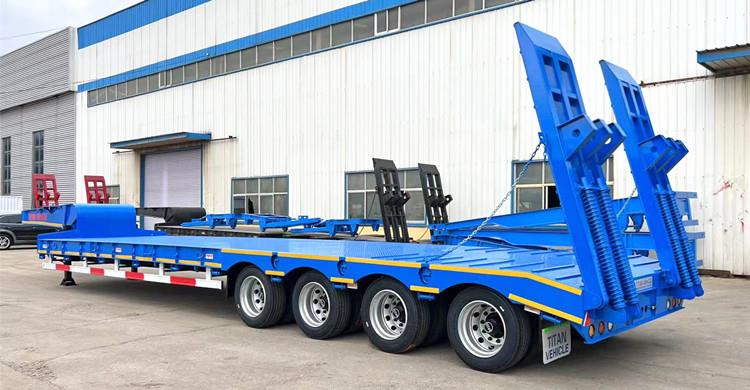

4 Axle 100 Ton Low Bed Truck for Sale in Ghana

1.2 What is the standard size of low bed trailer?

The standard size of a low bed trailer can vary depending on the region and specific regulations. As a professional manufacturer, we has provided many low bed trailers for many countries. Low bed truck trailers have different capacities, we can customize the low bed trailer for you according to your needs.

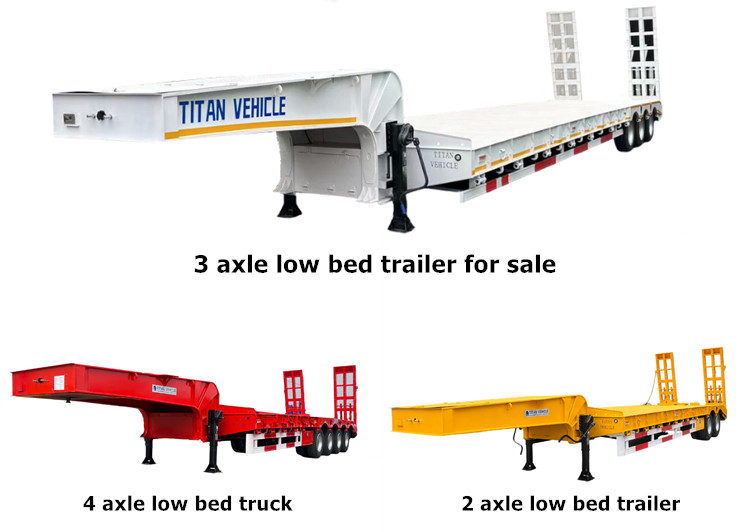

The following are the dimensions of several conventional models of low bed trailer in Ghana:

2 axle low bed trailer dimensions: 13000*3000*3750mm(platform height 1300mm)

3 axle low bed trailer dimensions: 14000*3000*3400mm(platform height 950mm)

4 axle low bed truck dimensions: 15800*3000*3750mm(platform height 1300mm)

Chapter 2: Components of the low bed trailer

Landing gear lifting system: In order to make the low bed trailer for sale reliably parked after being separated from the truck, the front end of the frame is provided with two linkage or single action landing gear. It consists of a screw drive mechanism, a bevel gear drive mechanism, a two-speed reduction gearbox, a transmission rod, an operating handle, and so on.

Traction pin: There is a traction pin connection plate connected to the tractor saddle at the lower part of the front end of the frame. The traction pin is mainly used to transmit the traction of the tractor and the braking force during braking.

Ramp: There are three styles of low bed truck ramps, the most common is spring ladders. There are also ordinary hydraulic ramps and folding hydraulic ladders.

Suspension system: transfer load and absorb vibration.

Axle and hub system: A single, two and three axle assemblies of the same structure are installed under the suspension system.

Semi trailer braking system: It is composed of the trachea connector, inflation pipe, operating channel, gas reservoir, brake air chamber, relay valve, ABS valve, ABS sensor and wheel brake of the tractor.

The inflatable tube is connected to the tractor gas tank through a quick pipe joint; it is connected to the tractor brake valve through a quick joint. When the low bed trailer brakes, each brake air chamber functions simultaneously.

Semi trailer airway: Three major parts: emergency relay valve, ABS valve, brake air chamber, most of the faults come from these three pieces.

Semi trailer circuit: The low bed truck in Ghana transmits the light signal of the main vehicle to the trailer by connecting the spiral cable plug of the truck to the circuit socket at the front of the trailer. Thus, the vehicle equip with an international general electrical system that matches the truck. The electrical system generally consists of seven core sockets, multi core cables, junction boxes, waterproof connectors, and various types of lamps and other components.

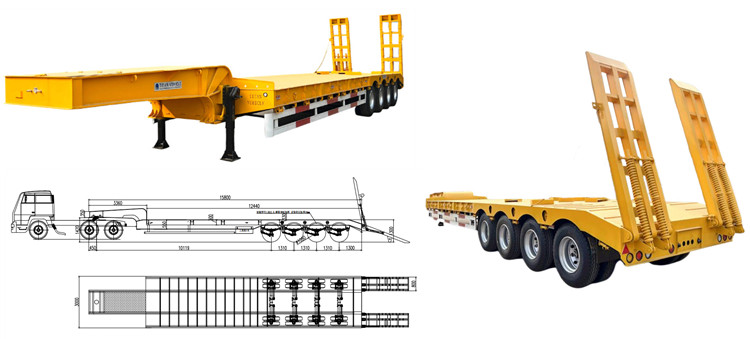

Details of Low Bed Trailer Truck in Ghana for Sale

Chapter 3: How to keep cargo stable on low bed trailer?

1. Increase the size of the base of support

You can increase the stability of a heavy object by increasing the size of its base of support. Increasing the size does not automatically increase stability. You must increase towards the direction of the oncoming or impeding force.

One way of increasing the base support is to change the position such that the widest part of the object lies on the ground. Another way is to increase the number of contact points with the ground where possible. For some objects, you may need to change the package or change the position to create an additional contact point.

Also the low bed trailer in Ghana can widen by some accessories to increase the size of working platform.

2. Place the object at the center of the base of support

The vertical projection of the center of gravity should be at the center of the base of support. In other words, the balance point should be at the center of the base or ground for the object to remain stable.

Placing the object near any of the edges may cause it to fall, especially when the low bed truck in Ghana changes its momentum. By placing the object at the center, you increase the distance that the center of gravity has to travel before it can cause the object to fall.

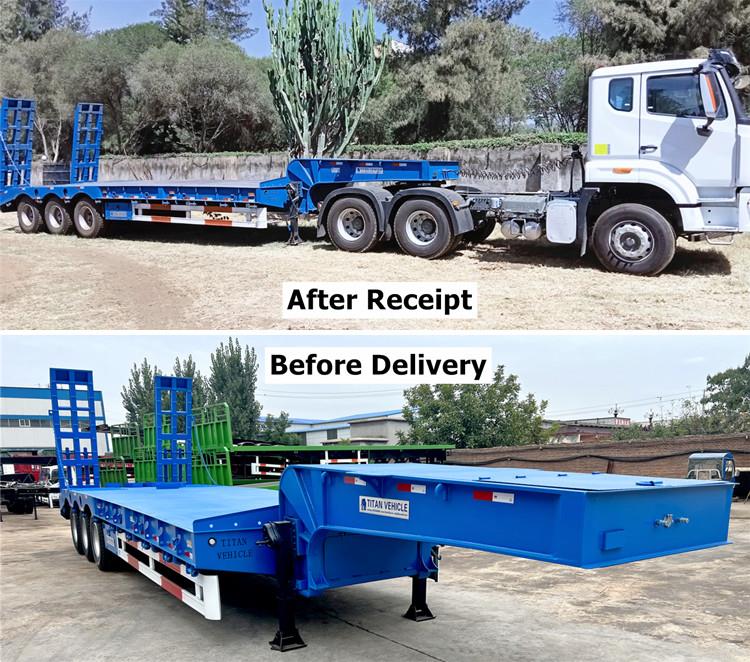

Customer Feedback of Low Bed Truck for Sale

3. Lower the center of gravity

The location of the center of gravity from the base of support determines the stability of an object. If the location is high above the base support, the object is likely to be unstable depending on the size of the support base. This explains why tall objects topple over easily.

The way to increase stability is to lower the center of gravity or reduce the distance between the center of gravity and the ground. So the low bed trailer for sale in Ghana is a good choice, it can make the center lower.

4. Lower the speed

Moving an object at a high speed increases its chances of toppling over. Speed does not necessarily affect the amount of gravitational force on an object. However, speed determines the reaction of the object when faced by an external force.

For instance, if you are transporting an object with a low bed truck in Ghana at a high speed, a sudden stop or hitting an obstacle will cause the object to topple over. Sometimes stepping on the brakes when driving at a high speed causes the object to fall or slide.
